1492-J3 Equivalent Terminal Block, UL Rated 28-12 AWG, 25A, 600V, 60PK
Mfr # ASI1492J3
Zoro # G115656571
Key Features
Specifications
Product Information
- MFR #
- ASI1492J3
- Zoro #
- G115656571
- UPC #
- 813101020446
- Country of Origin
- China
Dimensions
- Overall Width
- 0.75 in
- Overall Length
- 4 in
Details
- Item
- Terminal Block
- Mounting Type
- DIN
- Housing Color
- Gray
Description

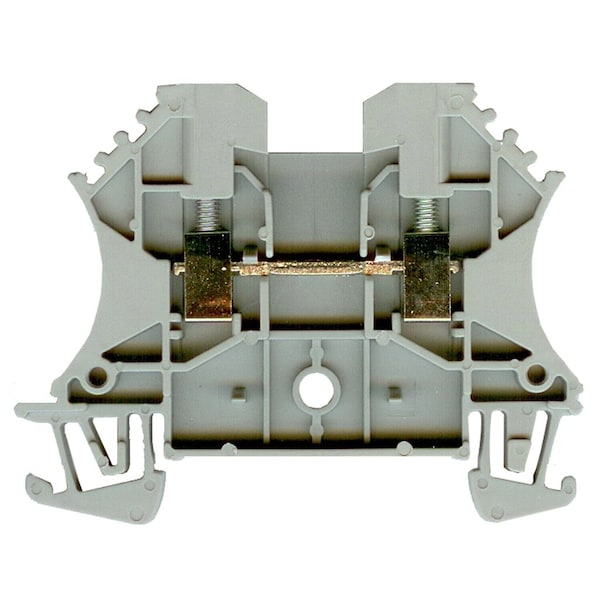

ASI1492J3 is a 1492-J3 terminal block equivalent that is physically similar, accepts same accessories but at a much lower cost than the 1492-J3. This 1492-J3 functional replacement terminal block is UL rated 25 Amps at 600 volts, 28 to 12 AWG, with screw clamp wire terminations. Although similar shape and dimensions the ASI1492-J3 does have marked improvements for better connectivity and terminations. The ASI1492-J3 5 mm wide DIN rail mounted terminal block has nickel-plated copper alloy metal bodies rather than steel for better connectivity and protection in harsh environments, high tensile screws for secure wire terminations, and a flame retardant UL94V0 housing. The ASI1492-J3 single level feed through terminal block mounts onto standard DIN rail, can be easily bridge common connections.
- 25 Amp
- Nickel-Plated Copper Alloy Metal Body
- Accepts 28-10 AWG
- Din Rail Mount
