2 Wire Spring TB, DIN Rail Mnt, Screwless Feed Through TB For 2 Wires, 24-12 AWG, 20Amp, 600V, 5.2mm, 80PK
Mfr # HM500GR
Zoro # G715679109
product price:Â
$
80.48
/pk 80, $1.01/ea
Key Features
Terminal Block Type
Pass-Through
Mounting Type
DIN
Connection Type
Spring Clamp
Housing Color
Gray
Overall Width
0.2 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HM500GR
- Zoro #
- G715679109
- UPC #
- 813101025373
- Country of Origin
- Italy
- Item
- Terminal Block
- Terminal Block Type
- Pass-Through
- Mounting Type
- DIN
- Connection Type
- Spring Clamp
- Housing Color
- Gray
Description

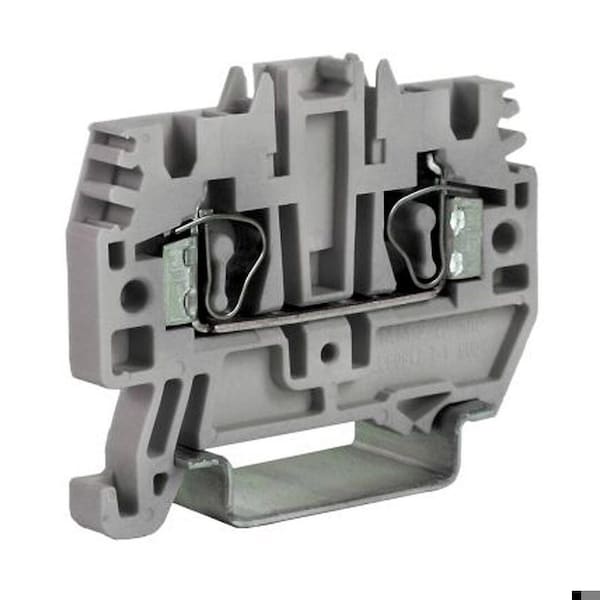

HM500GR, HMM.1/GR is a 5.2 mm wide gray DIN rail mount spring terminal block for the connection of 2 wires in a feed-through circuit. This 2 wire spring terminal block is designed with stainless steel spring clamps that offer superior resistance to corrosion. DIN rail screwless terminal block can be labeled on both sides and the top of the block for easy visual identification of the circuit. This DIN rail spring terminal block uses the PTC series of push in jumpers for easy connection of adjacent terminals. The DIN rail mounted spring terminal block has a wire range of 24 to 12 AWG and a rating of 20 amps at 600 volts by UL.
- Stainless Stell Spring Clamps
- 5.2mm Width
- Accepts 24-12 AWG
- Din Rail Mount
