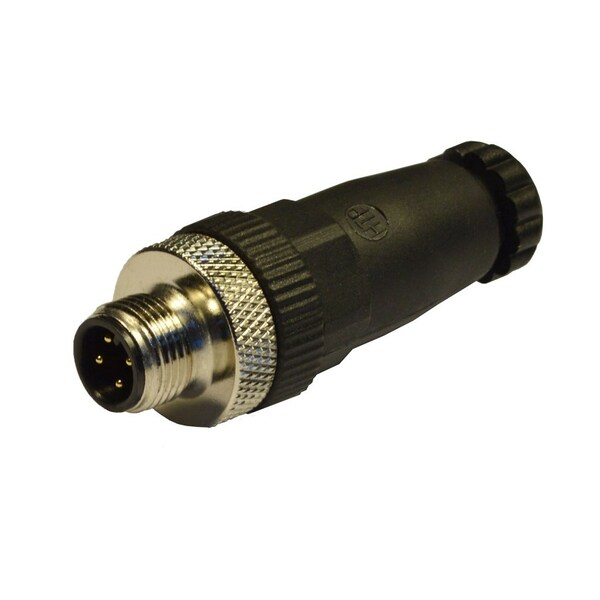

M12 Straight Male 3-Pole, A-Coded, Field Attachable Connector
Mfr # 12MC4000
Zoro # G215656679
Key Features
Specifications
Product Information
Dimensions
Details
Description
12MC4000 M12 male straight connector is engineered for industrial use, particularly in sensor and actuator applications. With a 4-pin insert and PG 7 cable entry, it supports cables from 4 to 6 mm in diameter. Its robust housing is made of glass fiber reinforced polyamide 66, complemented by a nickel-plated brass coupling nut for secure connections. Rated at 250V AC/DC and 4 Amps, this connector features an IP67 rating, providing total dust protection and resistance to temporary water immersion. Measuring 50.9 mm long and 20 mm in diameter, it operates within a temperature range of -40°C to 90°C -40°F to 194°F, ensuring reliability in demanding environments.
- M12 Straight
- 3 Pole
- Straight Male Connector
- Field Attachable
