Panel Interface Female DB9 Connector, Enclosed Panel Feed Through 9 Pin D Sub, IP65 and NEMA 4X

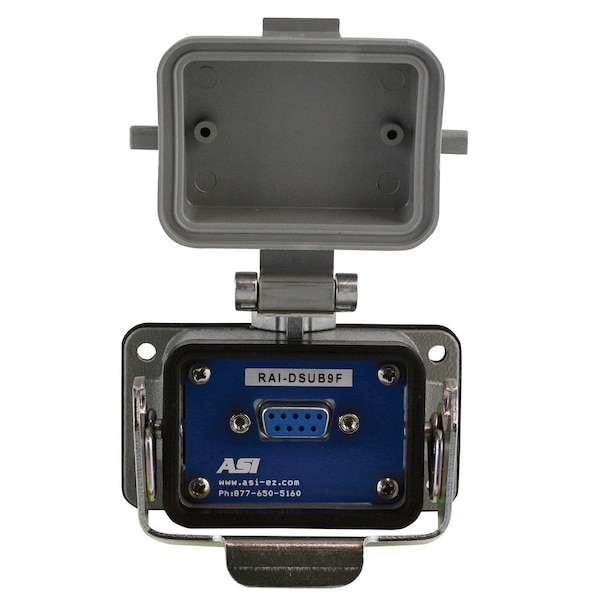

RAI-DSUB9F is a panel interface connector consisting of a female 9-pin DB9 connector in a robust aluminum connector housing with a locking cover. It is used in applications where you need to supply access to a female 9-pin D sub connector on a piece of equipment without having to open the door and enter the panel. The remote access interface or panel interface connector with a 9 pin female d sub connector mounts with 4 screws in a cut-out made on the side of a panel. Once mounted, there is a protected gateway between the inside and outside of the panel. The housing has a gasket so that the mounting to the enclosure wall is sealed and when the locking cover is closed a protection level of NEMA 4, 4X or IP65 is achieved. The internal connections to the 9 pin female panel interface connector are easy with a cable equipped with a male db 9 connector
