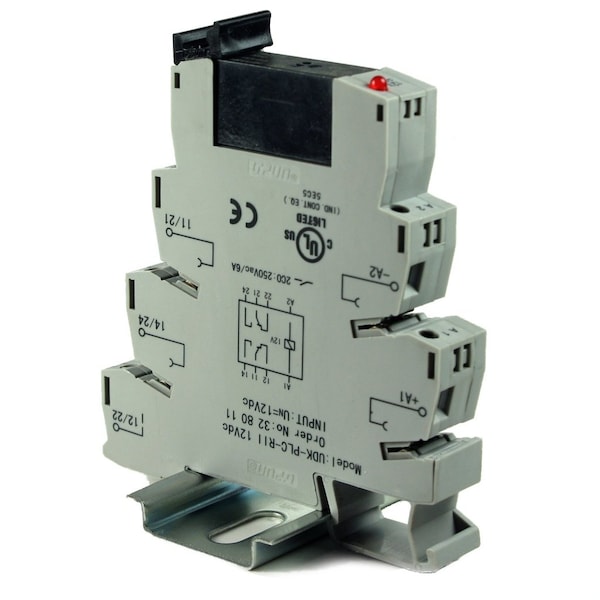

Terminal Block Relay, DIN Rail Mount 12V, DPDT Relay, 12Vdc Coil, 8A 250Vac Contact
Mfr # ASI328011
Zoro # G615656613
product price:Â $37.19
/eaKey Features
Length
3.1 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
ASI328011
Zoro #
G615656613
UPC #
810009766155
Country of Origin
China
Dimensions
Length
3.1 in
Details
Item
Relay
Description
ASI328011, Type ASIUDK-PLC-RII12VDC is a 12V terminal block relay with a pluggable DPDT relay that has a 12Vdc coil and a contact rating of 8A, 250Vac. This DPDT 12V DIN rail relay is ideal as an isolation relay or interposing relay and saves space in your equipment due to the 14mm width. Features of this 12V interposing terminal block relay include screw clamp wire terminations, a locking actuator to hold in place and remove the 12Vdc relay and a LED for visual indication.
- 8 Amp
- 12V DC
- Din Rail mount
- UL 508-Listed
- Visual Indication
- 14mm Width
