Terminal Block Relay, DIN Rail Mount 24V, Low Profile Height, SPDT, 24Vac/dc Coil, 6A 250Vac Contact
Mfr # ASI328037
Zoro # G215656723
Key Features
Specifications
Product Information
Dimensions
Details
Description

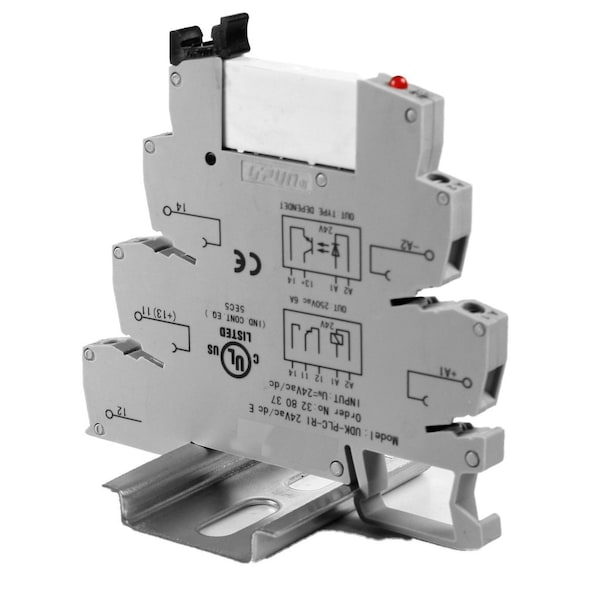

ASI328037, Type ASIUDK-PLC-RI24VAC/DC is a low profile height 24V terminal block relay with a pluggable SPDT relay that has a 24Vac/dc coil and a contact rating of 6A, 250Vac. This lower height 24V DIN rail relay is ideal as an isolation relay or interposing relay and saves space in your equipment due to the 6mm width. The lower height of this 24V relay terminal block makes it ideal for small enclosures. Features of this 24V terminal block relay include screw clamp wire terminations, a locking actuator to hold in place and remove the 24Vac/dc relay and a LED for visual indication.
- 6 Amp
- 24V AC/DC
- Din Rail mount
- UL508 Listed
- Visual Indication
- 6mm Width
