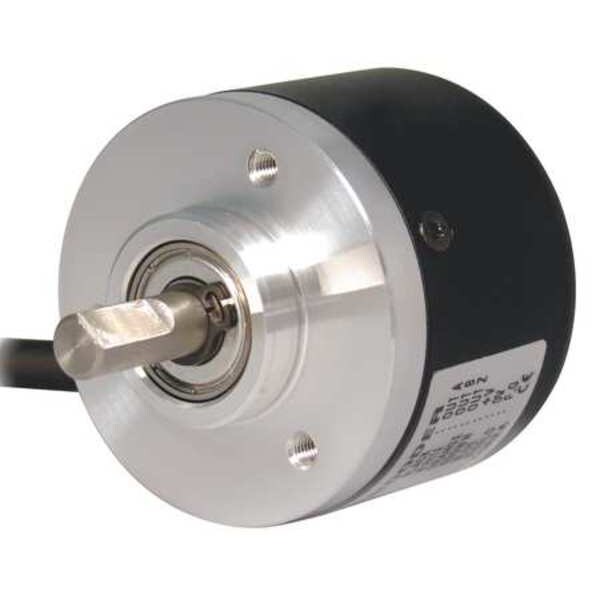

Encoder, Shaft, NPN Open, Dia 6mm, 360 PPR (Discontinued)
- Mfr # E40S6-360-3-N-24-C
- Zoro # G4225627
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
E40S6-360-3-N-24-C
Zoro #
G4225627
UPC #
-
Country of Origin
Korea, Republic of
Dimensions
Shaft Dia.
6 mm
Cable Length
250 mm
Diameter
40 mm
Depth
51 mm
Shaft Diameter
6 mm
Overall Diameter
40 mm
Overall Depth
51 mm
Details
Item
Encoder, Shaft
Shaft Type
External, 15 mm
Pulses per Revolution
360
Output Type
NPN Open Collector
Output
A, B, Z
Power Supply
12-24V DC
Standards
CE
Cable Entry
Side
Starting Torque
Max. 40 gf cm
Interface
Parallel
Max. RPM
5,000 RPM
Rotor Inertia
Max.40 g cm2
Cable Connection
M17 6 Pin QD
Includes
6mm Coupling and Hole Type Bracket
Maximum Speed
5,000 RPM
Cable Entry Location
Side
Description
Encoder, Shaft, Parallel, Output Type NPN Open Collector, Power Supply 12-24V DC, Shaft Type External, 15 mm, Shaft Diameter 6 mm, Starting Torque Max. 40 gf cm, Rotor Inertia 40 g/sq cm, Maximum Speed 5,000 RPM, Cable Length 250 mm, Cable Connection M17 6 Pin QD, Side Cable Entry Location, Overall Diameter 40 mm, Overall Depth 51 mm, Standards CE, Includes 6mm Coupling and Hole Type Bracket
