Shop AVENTICS

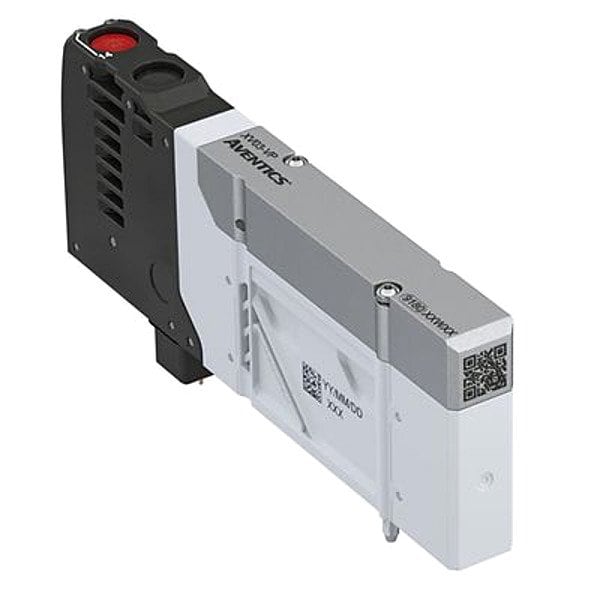

DIRECTIONAL CONTROL VALVE

  • Mfr # R572A2B10MA00F1

  • Zoro # G516665141

product price:
$
101.99
/ea
Free Shipping & Returns

Key Features

Return Action
Spring Return
Operating Temperature - Maximum
50 Degrees C
Duty Cycle
Continuous
Seal Material
Nitrile
Voltage
24V DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R572A2B10MA00F1
Zoro #
G516665141
UPC #
-
Country of Origin
Korea, Republic of
Item
Directional Control Valve
Return Action
Spring Return
Operating Temperature - Maximum
50 Degrees C
Duty Cycle
Continuous
Seal Material
Nitrile
Voltage
24V DC
Vacuum Rating
Vacuum Operable
Power Consumption
0.55 W
Operating Pressure - Maximum
8 bar
Product Type
Solenoid Air Control Valve
Override
Non-Locking
Pilot Pressure
3 bar
Operating Temperature - Minimum
-10 Degrees C
Body Style
Base-Mounted
Body Features
Single
Operating Pressure - Minimum
-0.95 bar
Valve Type
Spool
Number of Positions
Two-Position
Coefficient of Volume (Cv)
0.3
Body Material
Glass-Filled Nylon
Series
XV03
Number of Ways
Four-Way
Number of Ports
5
Electrical Connection Type
Plug-In
Application
Industrial
For Media
Compressed Air
Pilot Type
Internal Pilot
Actuator Type
Single Solenoid
Standards
UR
Includes Solenoid Coil
Solenoid Coil Included
Response Time
15 msec
Flow Rate - Maximum
345 lpm

Description

Directional Control Valve, Voltage 24V DC, Center Position Not Applicable, ISO Class Not Applicable, Body Style Base-Mounted, Pilot Pressure 3 bar, Power Consumption 0.55 W, Override Non-Locking, Overall Height 47 13/16 mm, Overall Length 99 1/2 mm, Overall Width 10 5/16 mm, Standards UR
