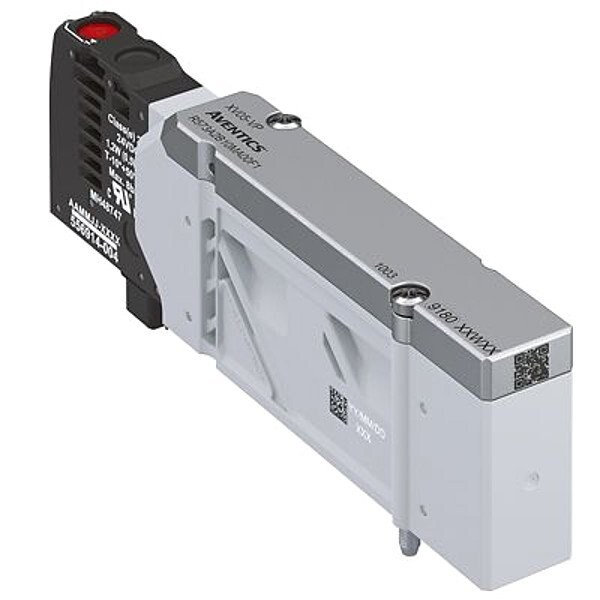

DIRECTIONAL CONTROL VALVE

  • Mfr # R573A2B10MA00F1
  • Zoro # G616665065
product price:
$
110.99
/ea
Free Shipping & Returns

Key Features

Return Action
Spring Return
Includes Solenoid Coil
Solenoid Coil Included
Product Type
Solenoid Air Control Valve
Power Consumption
0.55 W
Seal Material
Nitrile
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R573A2B10MA00F1
Zoro #
G616665065
UPC #
-
Country of Origin
Korea, Republic of
Item
Directional Control Valve
Return Action
Spring Return
Includes Solenoid Coil
Solenoid Coil Included
Product Type
Solenoid Air Control Valve
Power Consumption
0.55 W
Seal Material
Nitrile
Voltage
24V DC
Coefficient of Volume (Cv)
1
Standards
UR
Operating Pressure - Maximum
8 bar
Operating Temperature - Minimum
-10 Degrees C
Body Material
Glass-Filled Nylon
Operating Pressure - Minimum
-0.95 bar
Operating Temperature - Maximum
50 Degrees C
Number of Ports
5
Number of Positions
Two-Position
Override
Non-Locking
Vacuum Rating
Vacuum Operable
Flow Rate - Maximum
1,000 lpm
Pilot Pressure
3 bar
Body Style
Base-Mounted
Duty Cycle
Continuous
Series
XV05
Pilot Type
Internal Pilot
Number of Ways
Four-Way
Response Time
15 msec
Actuator Type
Single Solenoid
Valve Type
Spool
Body Features
Single
For Media
Compressed Air
Electrical Connection Type
Plug-In
Application
Industrial

Description

Directional Control Valve, Voltage 24V DC, Center Position Not Applicable, ISO Class Not Applicable, Body Style Base-Mounted, Pilot Pressure 3 bar, Power Consumption 0.55 W, Override Non-Locking, Overall Height 47 13/16 mm, Overall Length 127 mm, Overall Width 15 7/16 mm, Standards UR
