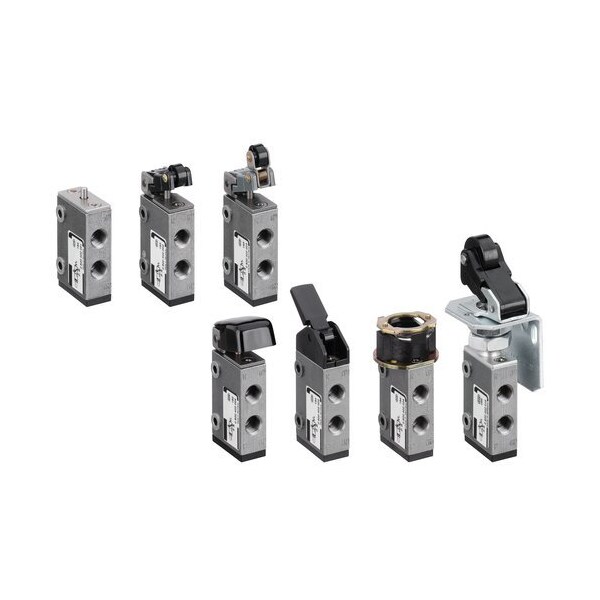

Manual Air Control Valve, Panel, SS
Mfr # R422002211
Zoro # G410854498
product price:Â
$
174.99
/ea
Free Shipping & Returns
Key Features
Number of Ways
Three-Way
Number of Positions
Two-Position
Overall Height
2 5/16 in
Overall Length
1 1/4 in
Overall Width
11/16 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- R422002211
- Zoro #
- G410854498
- UPC #
- -
- Country of Origin
- Poland
- Item
- Manual Air Control Valve
- Number of Ways
- Three-Way
- Number of Positions
- Two-Position
- Connection
- G 1/8
- Valve Temp. Range
- -15 Degrees to 80 Degrees C
- Valve Actuator / Return
- Spring
- Valve Ways and Positions
- 3-Way/2-Position
- Valve Max. Pressure Rating
- 10 bar
- Body Material
- Stainless Steel
- For Media
- Compressed Air
- Operating Temperature - Maximum
- 176 Degrees F
- Exhaust Port Connection Type
- Threaded
- Operating Pressure - Maximum
- 145 psi
- Operating Temperature - Minimum
- 5 Degrees F
- Valve Port Connection Type
- BSPP
- Product Type
- Manual Air Control Valve
- Valve Type
- Spool
- Return Action
- Spring Return
- Actuator Type
- Panel
- Body Style
- Panel-Mounted
Description
Manual Air Control Valve, Valve Ways and Positions 3-Way/2-Position, Valve Port Size 1/8 in, Connection G 1/8, Valve Actuator / Return Spring, Valve Max. Pressure Rating 10 bar, Valve Temp. Range -15 Degrees to 80 Degrees C, Center Position Not Applicable, Body Material Stainless Steel, Overall Length 1 1/4 in, Overall Height 2 5/16 in, Overall Width 11/16 in
