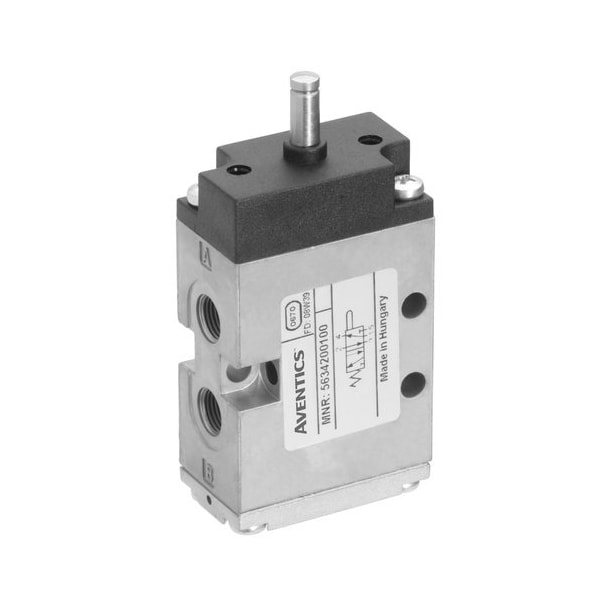

Manual Air Control Valve, Roller
Mfr # 5634210100
Zoro # G010473389
product price:Â
$
134.99
/ea
Free Shipping & Returns
Key Features
Number of Ways
Five-Way
Series
CD04
Number of Positions
Two-Position
Overall Length
1 13/16 in
Overall Width
1 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 5634210100
- Zoro #
- G010473389
- UPC #
- -
- Country of Origin
- Hungary
- Item
- Manual Air Control Valve
- Number of Ways
- Five-Way
- Series
- CD04
- Number of Positions
- Two-Position
- Valve Actuator / Return
- Roller
- Valve Temp. Range
- -20 Degrees to 65 Degrees C
- Valve Max. Pressure Rating
- 10 bar
- Valve Ways and Positions
- 5-Way/2-Position
- Body Material
- Die Cast Zinc
- Connection
- G 1/8
- Operating Pressure - Minimum
- 13.7 psi
- For Media
- Compressed Air
- Operating Pressure - Maximum
- 145 psi
- Operating Temperature - Minimum
- -4 Degrees F
- Exhaust Port Connection Type
- Threaded
- Vacuum Rating
- Vacuum Operable
- Valve Type
- Spool
- Actuator Type
- Roller
- Valve Port Connection Type
- BSPP
- Operating Temperature - Maximum
- 149 Degrees F
- Product Type
- Manual Air Control Valve
Description
Manual Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Valve Port Size 1/8 in, Connection G 1/8, Valve Actuator / Return Roller, Valve Max. Pressure Rating 10 bar, Valve Temp. Range -20 Degrees to 65 Degrees C, Center Position Not Applicable, Body Material Die Cast Zinc, Overall Length 1 13/16 in, Overall Width 1 in, Series CD04
