Shop AVENTICS

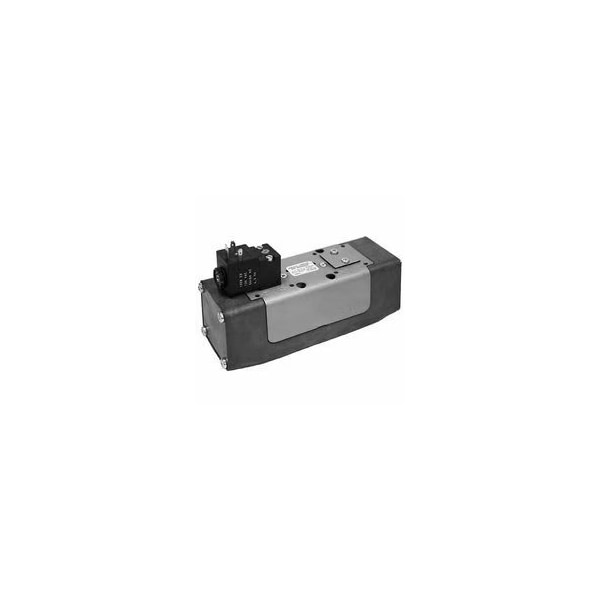

Solenoid Air Con Valve, Five-Way, 149 psi

  • Mfr # R432006243

  • Zoro # G810839279

product price:
$
442.99
/ea
Free Shipping & Returns

Key Features

Body Style
Base-Mounted
Series
CERAM
Voltage
24V DC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
35 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
R432006243
Zoro #
G810839279
UPC #
-
Country of Origin
Indonesia
Item
Solenoid Air Control Valve
Body Style
Base-Mounted
Series
CERAM
Voltage
24V DC
Valve Actuator / Return
Solenoid / Spring
Pilot Pressure
35 psi
Power Consumption
2.7 W
Body Material
Aluminum
Override
Non-Locking
Electrical Connections
Plug
Valve Ways and Positions
5-Way/2-Position
Number of Positions
Two-Position
ISO Class
5599-1
NEMA Classification
NEMA 4
Operational Pressure Range
2 to 10.3 bar
Ambient Temp. Range
-15 Degrees to 66 Degrees C
Shifting Technology
Solenoid/Pilot
Number of Ways
Five-Way
Standards
ISO 5599-1
Pilot Type
Internal Pilot
Pilot Port Connection Gender
Female
Body Features
Single
Operating Pressure - Maximum
149 psi
Inlet Port Connection Type
NPT
Pilot Port Connection Type
NPT
Vacuum Rating
Not Vacuum Operable
Number of Ports
5
Operating Pressure - Minimum
29 psi
Exhaust Port Connection Gender
Female
Valve Type
Ceramic Plate
Return Action
Spring Return
Product Type
Solenoid Air Control Valve
Electrical Connection Type
Plug-In
Inlet Port Connection Gender
Female
For Media
Air
Operating Temperature - Maximum
151 Degrees F
Includes Mounting Hardware
Hardware Not Included
Operating Temperature - Minimum
5 Degrees F
Coefficient of Volume (Cv)
7.5
NEMA Rating
4
Exhaust Port Connection Type
NPT
Flow Rate - Maximum
4,300 lpm
Actuator Type
Single Solenoid
Includes Solenoid Coil
Solenoid Coil Included

Description

Solenoid Air Control Valve, Valve Ways and Positions 5-Way/2-Position, Voltage 24V DC, Center Position Not Applicable, Valve Actuator / Return Solenoid / Spring, ISO Class 5599-1, Operational Pressure Range 2 to 10.3 bar, NEMA Classification NEMA 4, Body Style Base-Mounted, Pilot Pressure 35 psi, Plug Electrical Connections, Shifting Technology Solenoid/Pilot, Power Consumption 2.7 W, Ambient Temp. Range -15 Degrees to 66 Degrees C, Override Non-Locking, Overall Height 5 7/32 in
