  6. TR315 12X 4Kp60 Pro PTZ Cam

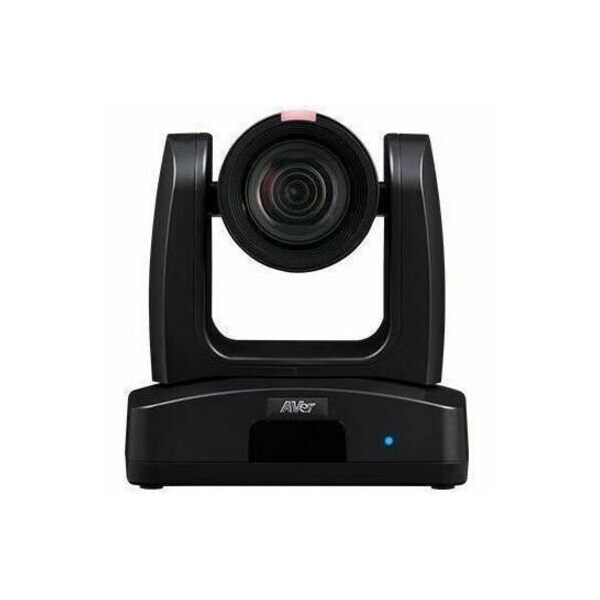

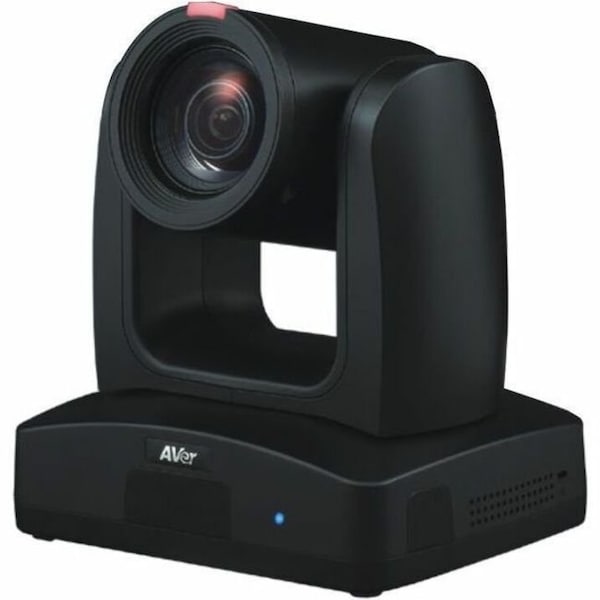

Avervision TR315 12X 4Kp60 Pro PTZ Cam PATR315V3 - main

TR315 12X 4Kp60 Pro PTZ Cam

  • Mfr # PATR315V3

  • Zoro # G612493075

product price:  $2,949.99
/ea
Free Shipping & Returns

Key Features

Height
7.6 in
Width
7.1 in
Features
White Balance, Noise Reduction, Wide Dynamic Range, 3D Noise Reduction, Mirror, Auto Gain Control, 2D Noise Reduction, Auto Tracking, PTZ, Back Light Compensation (BLC)
Longest Shutter Speed
1/1 Second
HDMI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PATR315V3
Zoro #
G612493075
UPC #
848090009769
Country of Origin
Taiwan, Province of China

Dimensions

Height
7.6 in
Width
7.1 in
Image Sensor Size
1/2.8 in
Maximum Focal Length
46.80 mm
Depth
5.7 in
Minimum Focal Length
3.90 mm

Details

Item
Network Camera
Features
White Balance, Noise Reduction, Wide Dynamic Range, 3D Noise Reduction, Mirror, Auto Gain Control, 2D Noise Reduction, Auto Tracking, PTZ, Back Light Compensation (BLC)
Longest Shutter Speed
1/1 Second
HDMI
Yes
HD Recording
Yes
Maximum Video Resolution
3840 x 2160
Shortest Shutter Speed
1/10000 Second
Recording Formats
4K
Maximum Operating Temperature
104°F (40°C)
Image Sensor Type
Exmor CMOS
Minimum Operating Temperature
32°F (0°C)
Optical Zoom
12x
Power Source Type
PoE+
Field of View
DFOV : 80.6° (Wide) to 7.7° (Tele) HFOV : 72.8° (Wide) to 6.7° (Tele) VFOV : 44.1° (Wide) to 3.8° (Tele)
Lens Included
Yes
Network (RJ-45)
Yes
Indoor/Outdoor
Indoor
Minimum Aperture
f/2.8
USB
Yes
Video Formats
H.264, H.265, MJPEG
Ethernet Technology
Gigabit Ethernet
Remote Management
Yes
Effective Camera Resolution
8 Megapixel
Maximum Aperture
f/1.6
Package Contents
12X 4K PTZ Streaming Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, 4 x Cable Ties, 3 x M2 x 4 mm Screws, 3 x M3 x 6 mm Screws, 2 x 1/4'-20L 6.5mm Screws, Cable Fixing Plate, 2 x Ceiling Mount Brackets, Drilling Paper, Quick Start Guide
Color Supported
Color
Maximum Frame Rate
60 fps
Connectivity Technology
Wired
Maximum Power Consumption
18 W
Lens Type
Varifocal
Analog Video Signal Format
3G-SDI
Input Voltage
12 V
Camera Iris
Auto, Manual
Minimum Storage Humidity
20%
Minimum Storage Temperature
-4°F (-20°C)
Audio Support
Yes
AI-powered
Yes
Maximum Storage Humidity
95%
Minimum Operating Humidity
20%
Field Of View (FOV) Angle
D FOV 80.6° (wide) ~ 7.7°(Tele) HFOV 72.8° (wide) ~ 6.7°(Tele) V FOV 44.1° (wide) ~ 3.8°(Tele)
Maximum Storage Temperature
140°F (60°C)
Protocols
HTTP, IPv4, HTTPS, RTMP, IGMP, DHCP, TCP, RTSP, ICMP, VISCA over IP, RTP/RTCP, ARP, LLDP, UDP
Mount Type
Ceiling Mount
Maximum Operating Humidity
80%

Description
