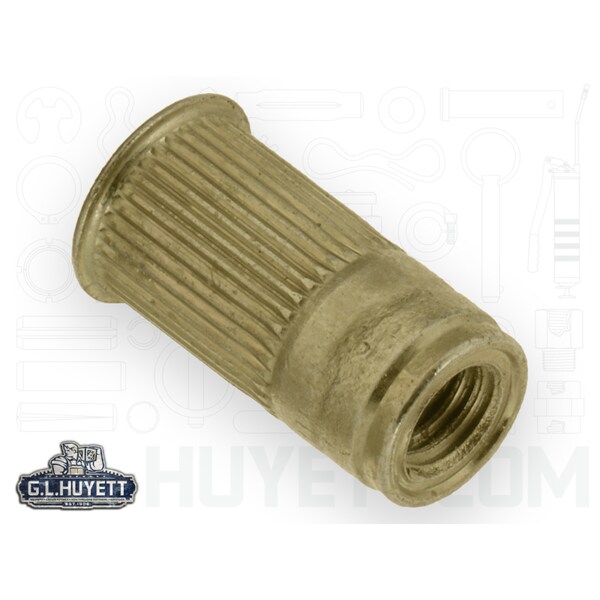

Rivet Nut, #10-32 Thread Size, 0.340 in Flange Dia., .585 in L, Steel
Mfr # BTI-AKS4-1032-225/B
Zoro # G100398073
CAD Available
product price:Â $0.20
/ea
Sold in multiples of 121 for $24.20
Key Features
CAD Drawing
Body Texture
Knurled
Thread Size
#10-32
Drill Bit Size
19/64"
Material
Steel
Finish
Zinc Yellow
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
BTI-AKS4-1032-225/B
Zoro #
G100398073
UPC #
-
Country of Origin
United States
Dimensions
Thread Size
#10-32
Drill Bit Size
19/64"
Flange Diameter
0.340 in
Insert Diameter
.296 in
Overall Length
.585 in
Hole Size
.297" (19/64)
Head Height
.019"
Details
CAD Available
Yes
Item
Rivet Nut
Body Texture
Knurled
Material
Steel
Finish
Zinc Yellow
Grip Range
.130 in to .225 in
Rivet Standards
Not Listed
System of Measurement
Inch
End Type
Open
Description
Blind Thrd Inserts-A-K Series. Insert Knurled AK #10-32x225 ST ZY Open
