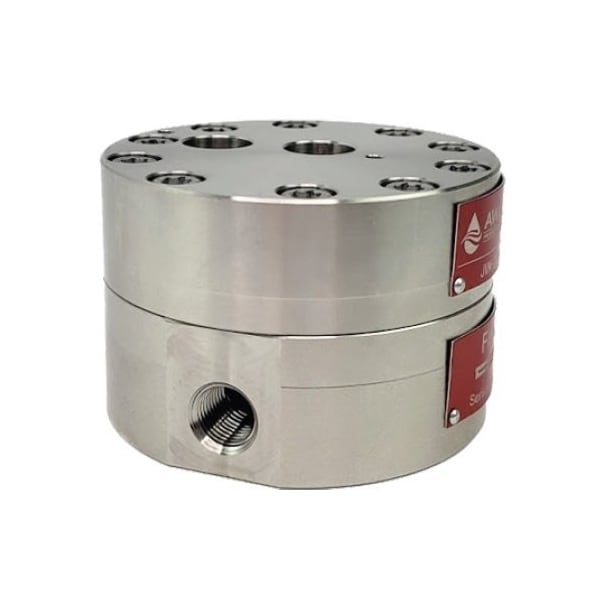

JV-UF Positive Displacement Gear Flow Meter

  • Mfr # JVS-01UFT-NS

  • Zoro # G022964929

product price:  $8,084.99
/ea
Free Shipping & Returns

Key Features

Housing Material
316L Stainless Steel / DIN 1.4404
Connection Size
1/4 in
Connection Type
NPT
Max. Pressure
5000 psi
Sensor Hole
2 x M14 - 1.5
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JVS-01UFT-NS
Zoro #
G022964929
UPC #
-
Country of Origin
Germany

Dimensions

Connection Size
1/4 in

Details

Item
JV-UF Positive Displacement Gear Flow Meter
Housing Material
316L Stainless Steel / DIN 1.4404
Connection Type
NPT
Max. Pressure
5000 psi
Sensor Hole
2 x M14 - 1.5
Gear Material
Stainless Steel (DIN 1.4122)
Repeatability
± 0.05%
Shaft Material
Tungsten Carbide
Max. Temp. (F)
356 Degrees F
Flow Range (GPM)
0.005 to 0.25 gpm
Seal Material
PTFE
Flow Range (LPM)
0.002 to 1.0 L/min
Pulses per Gallon
302600 pulses/gal
Accuracy (%)
±0.5% optional with select sensors, ±1.5% over full range (viscosity ≥ 5cP), ±2.5% over full range (viscosity ≥ 5cP) for JV-01UF
Reccomended Filtration
15 µm
Bearing Material
Stainless Steel (DIN 1.4122)

Description

The JV-UF is designed for low viscosity fluids (solvents, scale inhibitor, methanol, DEF) thanks to the exceptionally tight clearances around the gears which prevent fluid from slipping past. This meter can measure very low flow rates (as low as 0.0005 gpm with a 5cP fluid and as high as 20 gpm).

Restrictions

This item has been restricted from sale in the following states: CA
