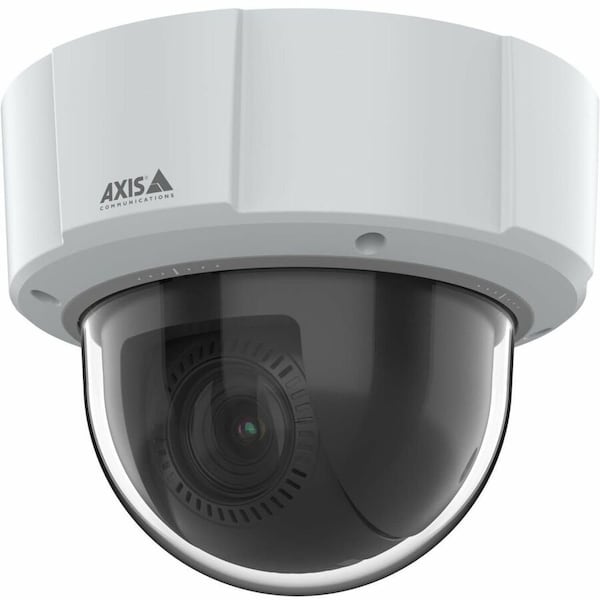

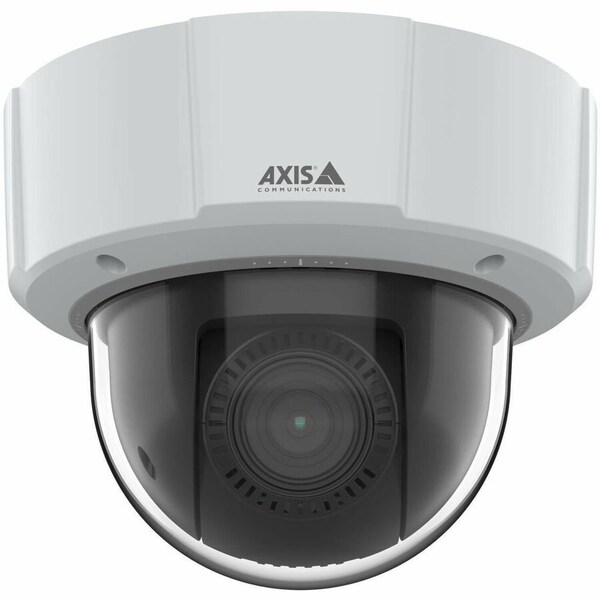

M5526-E 60 HZ

Mfr # 02769-001
Zoro # G011379017

$1,374.99

Free Shipping & Returns

Key Features

Color

White

Image Sensor Type

RGB CMOS

Features

Day/Night, HTTPS Encryption, Vehicle Detection, Privacy Masking, Human Detection, Password Protection, Ingress Protection, White Balance, Wide Dynamic Range, Motion Detection

Maximum Video Resolution

2688 x 1512

Input Voltage

28 V DC, 20 V DC

See all product information

Get a 10% off coupon

Free 30-day returns

Return Policy

Get 30 days to pay with Net 30

Apply Now

Real support from real people

Contact our U.S. based team

Specifications

Product Information

MFR #

02769-001

Zoro #

G011379017

UPC #

46171610

Country of Origin

Taiwan, Province of China

Dimensions

Maximum Focal Length

47 mm

Minimum Focal Length

4.70 mm

Image Sensor Size

1/3"

Details

Item

Network Camera

Color

White

Image Sensor Type

RGB CMOS

Features

Day/Night, HTTPS Encryption, Vehicle Detection, Privacy Masking, Human Detection, Password Protection, Ingress Protection, White Balance, Wide Dynamic Range, Motion Detection

Maximum Video Resolution

2688 x 1512

Input Voltage

28 V DC, 20 V DC

Field of View

Horizontal field of view: 59.1°-6.5°, Vertical field of view: 35°-3.67°

Maximum Aperture

f/1.6

Effective Camera Resolution

4 Megapixel

Environmentally Friendly

Yes

Package Contents

(1) M5526-E PTZ Camera Indoor and outdoor 4 MP with 10x zoom and focus recall, (1) Installation Guide, (1) Bayonet Adapter, (1) Terminal Bloc

Minimum Aperture

f/3

Storage Type

Memory Card

Remote Management

Yes

Maximum Operating Humidity

Ethernet Technology

Fast Ethernet

Optical Zoom

10x

Ingress Protection Rating

IP66

Maximum Power Consumption

12.95 W

Impact Protection Rating

IK09

Maximum Frame Rate

60 fps

Video Formats

H.264, H.264M (MPEG-4 Part 10/AVC), Zipstream, H.265, H.265 (MPEG-H Part 2/HEVC) Main Profile, Motion JPEG, H.264H (MPEG-4 Part 10/AVC), H.264B (MPEG-4 Part 10/AVC)

HD Recording

Yes

Protocols

TLS, RTCP, IGMPv1/v2/v3, MQTT, IEEE 802.1AR, NTS, RTP, ONVIF, IEEE 802.1X (EAP-TLS), ICMPv4/ICMPv6, MQTT v3.1.1, UDP, FTP, SSH, CDP, ARP, DDNS, LLDP, RTSP, DHCPv4/v6, UPnP, HTTPS, NTP, IPv4, HTTP, HTTP/2, SNMPv1/v2c/v3 (MIB2), SMTP, DNS/DNSv6, SRTP/RTSPS, CIFS/SMB, IPv6 USGv6, TCP, SFTP, Syslog, DiffServ (QoS), ZeroConf, ICMP

Minimum Operating Temperature

-4°F (-20°C)

Connectivity Technology

Wired

Lens Included

Yes

Network (RJ-45)

Yes

Camera Iris

Auto, P-iris

Indoor/Outdoor

Maximum Operating Temperature

122°F (50°C)

Power Source Type

PoE, DC

Color Supported

Color

Longest Shutter Speed

0.2 sec

Shortest Shutter Speed

1/27000 Second

Lens Type

Varifocal

Series

M55

Description
