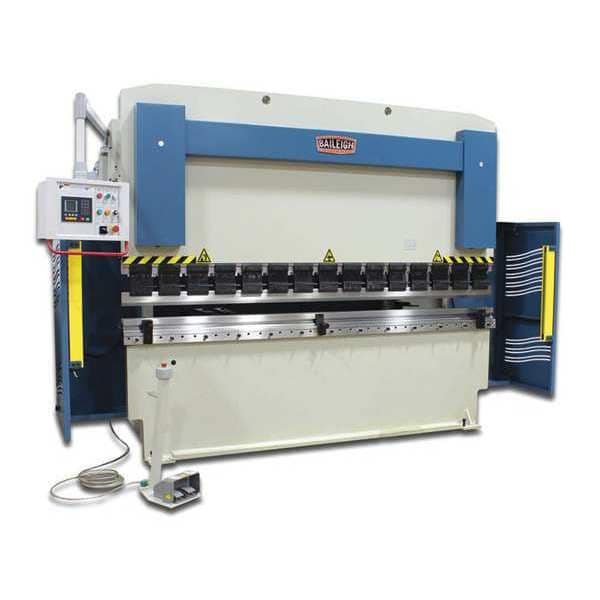

Baileigh Industrial Sheet Metal Brake, 100 in, Bending, Foot Pedal BP-22410CNC - main

Sheet Metal Brake, 100 in, Bending, Foot Pedal

  • Mfr # BP-22410CNC

  • Zoro # G1998250

product price:  $126,873.99
/ea
Item requires special delivery charges. A $3,855.00 per item surcharge will be applied.

Key Features

Bending Length (In.)
100 in
Application
Bending
Construction
Steel
Features
2 Axes of Control: Stroke and Back Gauge Distance, Chain Drive Linkage Keeps Hydraulic Cylinders in Time With Each Other, Foot Pedal Brings the Stroke Up and Down, Hydraulic Cylinders are Near the Back of the Machine for Convenient Fluid Changes, Industrial-Grade Hydraulic System With a Nachi(R) Pump, Torque Tube Connects the 2 Hydraulic Cylinders to They Stay Synchronized and Parallel to the Bending Table at All Times
Voltage
220V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BP-22410CNC
Zoro #
G1998250
UPC #
-
Country of Origin
China

Dimensions

Bending Length (In.)
100 in
Bending Length
10 ft

Details

Item
Sheet Metal Brake
Application
Bending
Construction
Steel
Features
2 Axes of Control: Stroke and Back Gauge Distance, Chain Drive Linkage Keeps Hydraulic Cylinders in Time With Each Other, Foot Pedal Brings the Stroke Up and Down, Hydraulic Cylinders are Near the Back of the Machine for Convenient Fluid Changes, Industrial-Grade Hydraulic System With a Nachi(R) Pump, Torque Tube Connects the 2 Hydraulic Cylinders to They Stay Synchronized and Parallel to the Bending Table at All Times
Voltage
220V AC
Phase
Three-Phase
Brake Type
Press Brake
Motor Type
Electric
Includes
Support Arms
Power Source
Corded
Actuation
Foot Pedal
Compatible Die Type
Multi-Vee Bottom Die and Gooseneck Punches
Horsepower
15 hp
Color
Blue, White
Material
Steel
Hydraulic Force
224 Tonf
Tool Weight
21,280 lb
Angle Gauge
No
Current
33.5 A
Maximum Bend Angle
90 Degrees

Description

Sheet Metal Brake, Brake Type Press Brake, Actuation Foot Pedal, Bending Length 10 ft, Maximum Bend Angle 90 Degrees , Voltage 220V AC, Phase Three-Phase, Current 33.5 A, Motor Type Electric, Angle Gauge No, Hydraulic Force 224 Tonf
