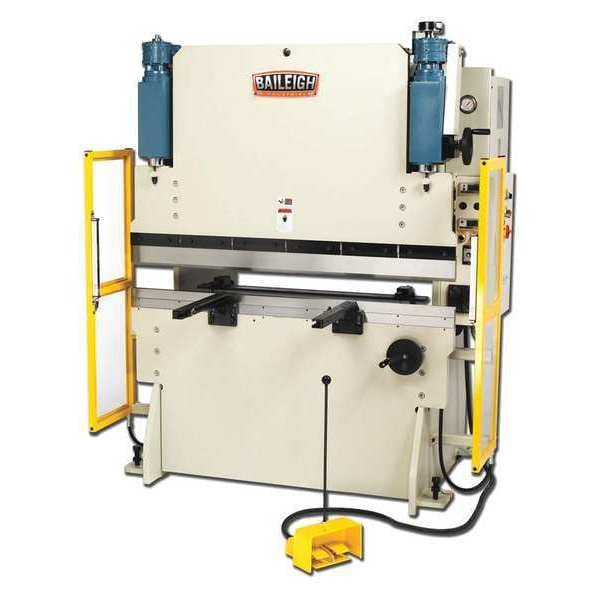

Baileigh Industrial Sheet Metal Brake, 49 in, Bending, 220V AC BP-3360NC - main

Sheet Metal Brake, 49 in, Bending, 220V AC

  • Mfr # BP-3360NC

  • Zoro # G3477120

product price: $57,828.99
/ea
Item requires special delivery charges. A $1,020.00 per item surcharge will be applied.

Key Features

Bending Length (In.)
49 in
Application
Bending
Construction
Steel
Phase
Three-Phase
Features
Digital Readout (DRO) Displays the Position of the Downward Stroke, Hand Wheels Allow Adjusting the Position of the Beam and Back Gauge for Consistency Across the Entire Width of the Beam, Motorized Back Gauge Rides on a Solid Ball Screw Trolley Mechanism, Parallel Mechanism on the Beam Synchronizes the Top and Bottom Die, Runs in 3 Modes: Jog Mode for Setup, Manual Mode for More Control Over Descent and Return, and Automatic Mode for Full Production
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BP-3360NC
Zoro #
G3477120
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Bending Length (In.)
49 in
Bending Length
61 in

Details

Item
Sheet Metal Brake
Application
Bending
Construction
Steel
Phase
Three-Phase
Features
Digital Readout (DRO) Displays the Position of the Downward Stroke, Hand Wheels Allow Adjusting the Position of the Beam and Back Gauge for Consistency Across the Entire Width of the Beam, Motorized Back Gauge Rides on a Solid Ball Screw Trolley Mechanism, Parallel Mechanism on the Beam Synchronizes the Top and Bottom Die, Runs in 3 Modes: Jog Mode for Setup, Manual Mode for More Control Over Descent and Return, and Automatic Mode for Full Production
Voltage
220V AC
Includes
Set of Hardened Single-Vee American Tooling and Front Material Rests
Color
Blue, White
Material
Steel
Power Source
Corded
Hydraulic Force
33 Tonf
Compatible Die Type
Hardened Single-Vee
Horsepower
3 hp
Motor Type
Electric
Current
9 A
Brake Type
Press Brake
Sheet Metal Capacity Mild Steel
14 ga
Angle Gauge
No
Maximum Bend Angle
90 Degrees
Actuation
Foot Pedal

Description

Sheet Metal Brake, Brake Type Press Brake, Actuation Foot Pedal, Sheet Metal Capacity Mild Steel 14 ga, Bending Length 61 in, Maximum Bend Angle 90 Degrees , Voltage 220V AC, Phase Three-Phase, Current 9 A, Motor Type Electric, Angle Gauge No, Hydraulic Force 33 Tonf
