Shop BAILEIGH INDUSTRIAL

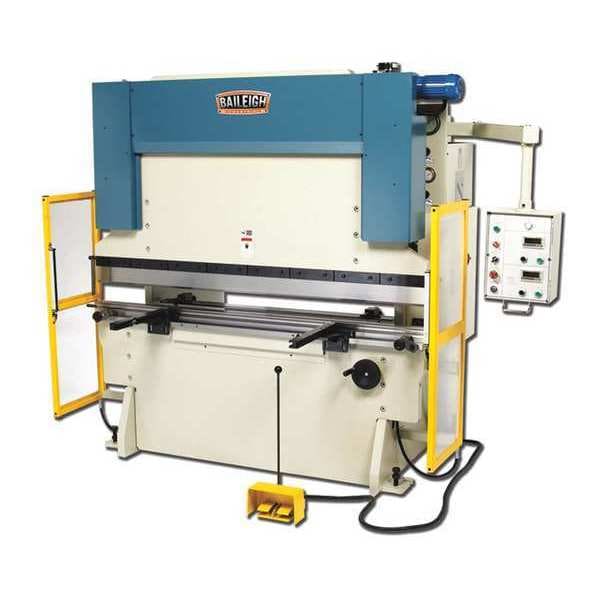

Sheet Metal Brake, 61 in, Bending, 220V AC

  • Mfr # BP-9078NC

  • Zoro # G1998390

product price:
$
101,315.99
/ea
Additional $2,115.00 delivery surcharge applies per item.
See details
Zoro's best price: not eligible for any other offers or promotions

Key Features

Bending Length (In.)
61 in
Application
Bending
Construction
Steel
Features
2 Encoder-Controlled Hydraulic Cylinders Move the Top Beam, 2 Hand Wheels Adjusts the Position of the Beam and Back Gauge for Consistency Across the Entire Width of the Beam, Digital Readout (DRO) Displays the Position of the Downward Stroke, Foot Pedal Brings the Stroke Up and Down, Motorized Back Gauge Rides on a Solid Ball Screw Trolley Mechanism, Parallel Mechanism on the Beam Synchronizes the Top and Bottom Die to Deliver Better Quality Bends Across the Entire Width of the Machine
Voltage
220V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
BP-9078NC
Zoro #
G1998390
UPC #
-
Country of Origin
Taiwan, Province of China
Item
Sheet Metal Brake
Application
Bending
Construction
Steel
Features
2 Encoder-Controlled Hydraulic Cylinders Move the Top Beam, 2 Hand Wheels Adjusts the Position of the Beam and Back Gauge for Consistency Across the Entire Width of the Beam, Digital Readout (DRO) Displays the Position of the Downward Stroke, Foot Pedal Brings the Stroke Up and Down, Motorized Back Gauge Rides on a Solid Ball Screw Trolley Mechanism, Parallel Mechanism on the Beam Synchronizes the Top and Bottom Die to Deliver Better Quality Bends Across the Entire Width of the Machine
Voltage
220V AC
Phase
Three-Phase
Includes
Set of Hardened Single-Vee American Tooling and Front Material Rests
Color
Blue, White
Material
Steel
Motor Type
Electric
Horsepower
10 hp
Current
27 A
Hydraulic Force
90 Tonf
Compatible Die Type
Hardened Single-Vee
Angle Gauge
No
Maximum Bend Angle
90 Degrees
Tool Weight
8,800 lb
Brake Type
Press Brake
Actuation
Foot Pedal
Power Source
Corded

Description

Sheet Metal Brake, Brake Type Press Brake, Actuation Foot Pedal, Bending Length 78 in, Maximum Bend Angle 90 Degrees , Voltage 220V AC, Phase Three-Phase, Current 27 A, Motor Type Electric, Angle Gauge No, Hydraulic Force 90 Tonf
