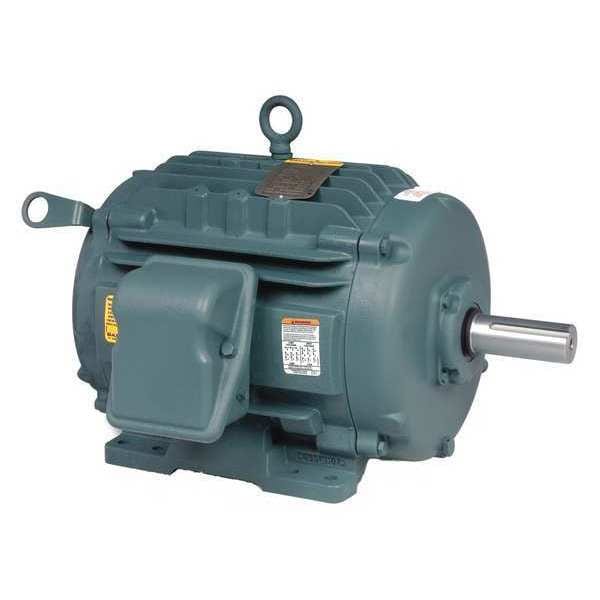

3-Phase AC Induction Motor, 7 1/2 hp HP, 254T Frame, 208V AC, 230V AC, 460V AC Voltage
- Mfr # CTM2276T
- Zoro # G7059556
product price:Â
$
2,633.99
/ea
Additional $90.00 delivery surcharge applies per item.
Key Features
HP
7 1/2 hp
Nameplate RPM
1,160
Voltage
208V AC, 230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
10.90/21.8/24 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Dimensions
- Length Less Shaft
- 18 4/25 in
- Overall Length
- 22 1/8 in
- Shaft Dia.
- 1 5/8 in
- Shaft Length
- 4 in
- Shaft Diameter
- 1 5/8 in
- Frame Size
- 254T
- Wire Rope Length
- 22 1/8 in
- Length
- 22 1/8 in
Description
AC Induction Motor, 3-Phase, Totally Enclosed Air-Over Motor Enclosure Design, 7 1/2 hp HP, Nameplate RPM 1,160, Frame 254T, Voltage 208V AC, 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 10.90/21.8/24 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Sealed Motor Bearings, Motor Frame Material Iron, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, 1,101-1,200, CSA, UR
