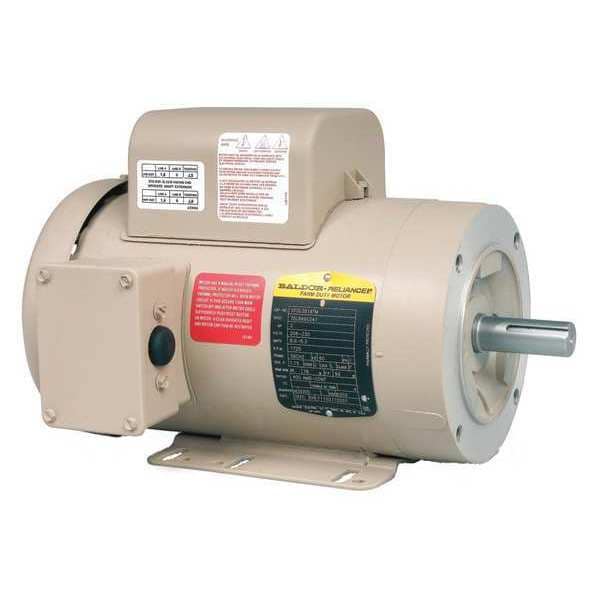

Capacitor-Start/Run General Purpose Motor, 2 hp HP, 230V AC Voltage, 56CHZ Frame
Mfr # CFDL3516TM
Zoro # G7128226
product price: $1,367.68
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
2 hp
RPM Range
1,701-1,800
Voltage
230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CFDL3516TM
Zoro #
G7128226
UPC #
781568134498
Country of Origin
United States
Dimensions
Shaft Length
1 7/8 in
Shaft Dia.
7/8 in
Overall Length
14 1/8 in
Length Less Shaft
12 1/4 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 2 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 7.9 A, 56CHZ Frame, Usable @ 208V Usable at 208V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection Manual, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW, Motor Mounting Type C-Face, Rigid Base
