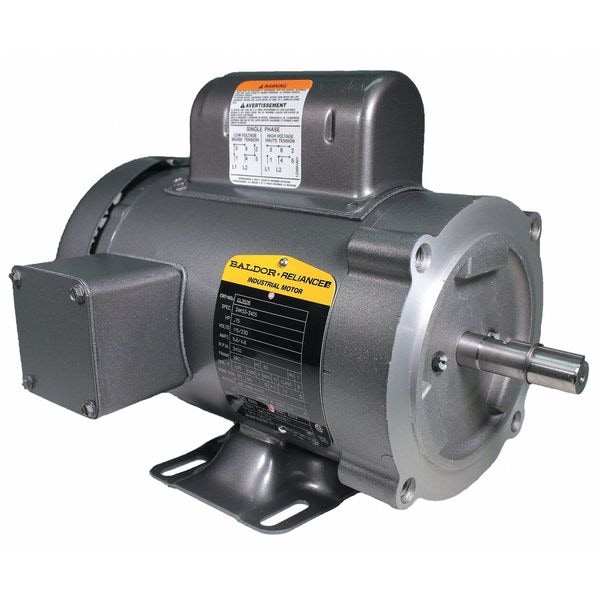

Capacitor-Start/Run General Purpose Motor, 3/4 hp HP, 56C Frame, 115/208-230V AC Voltage
Mfr # CL3506
Zoro # G8984525
product price: $576.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
C-Face, Rigid Base
HP
3/4 hp
RPM Range
3,001-3,600
Voltage
115/208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CL3506
Zoro #
G8984525
UPC #
781568109267
Country of Origin
United States
Dimensions
Manufacturers Warranty Length
2 yr
Overall Length
12 in
Shaft Dia.
5/8 in
Length Less Shaft
10 1/8 in
Shaft Length
1 15/16 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 3/4 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 115/208-230V AC, Full Load Amps 4.8 A, 56C Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.25, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design N, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
