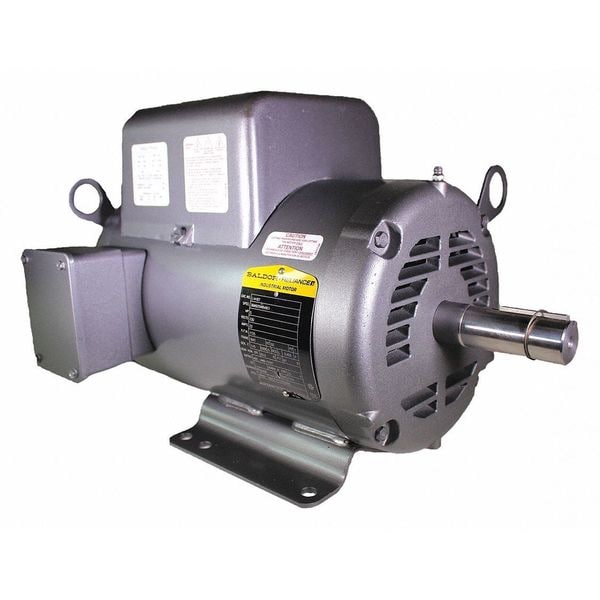

Capacitor-Start/Run General Purpose Motor, 5 hp HP, 230V AC Voltage, 184T Frame
Mfr # L1410T
Zoro # G5145156
product price: $1,202.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Open Drip Proof
Motor Mounting Type
Rigid Base
HP
5 hp
RPM Range
1,701-1,800
Voltage
230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
L1410T
Zoro #
G5145156
UPC #
781568101650
Country of Origin
United States
Dimensions
Length Less Shaft
13 3/4 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
2 yr
Shaft Dia.
1 1/8 in
Overall Length
16 1/2 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 1,800 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 21.0 A, 184T Frame, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1.15, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Open Drip Proof, Motor Shaft Rotation CW/CCW, Motor Mounting Type Rigid Base
