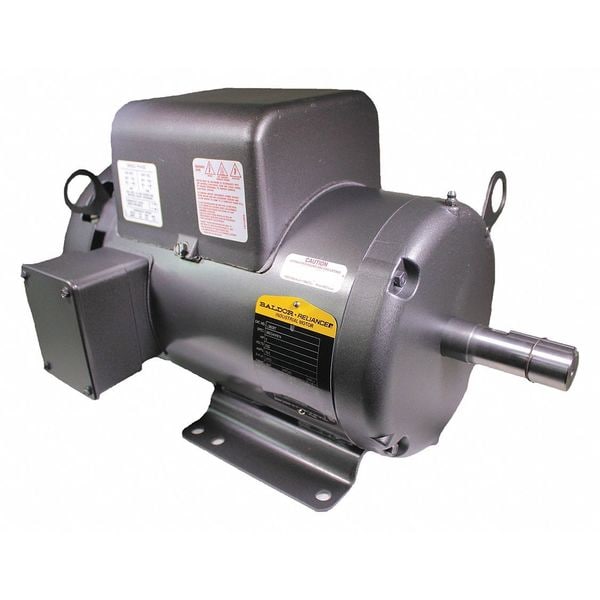

Capacitor-Start/Run General Purpose Motor, 5 hp HP, 230V AC Voltage, 184T Frame
Mfr # L3608T
Zoro # G7988635
product price: $1,813.99
/ea
Free Shipping & Returns
Key Features
Motor Enclosure Design
Totally Enclosed Fan Cooled
Motor Mounting Type
Rigid Base
HP
5 hp
RPM Range
3,001-3,600
Voltage
230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
L3608T
Zoro #
G7988635
UPC #
781568100806
Country of Origin
United States
Dimensions
Shaft Length
2 3/4 in
Overall Length
18 1/16 in
Manufacturers Warranty Length
2 yr
Length Less Shaft
15 5/16 in
Shaft Dia.
1 1/8 in
Description
General Purpose Motor, Single Phase, Motor Design Capacitor-Start/Run, 5 hp HP, Nameplate RPM 3,600 RPM, No. of Speeds 1, Voltage 230V AC, Full Load Amps 19.5 A, 184T Frame, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Hz 60 Hz, Motor Service Factor 1, Max. Ambient Temp. 40 Degrees C, Motor Thermal Protection None, Duty Cycle Continuous, Ins. Class F, NEMA Design L, Motor Enclosure Design Totally Enclosed Fan Cooled, Motor Shaft Rotation CW/CCW
