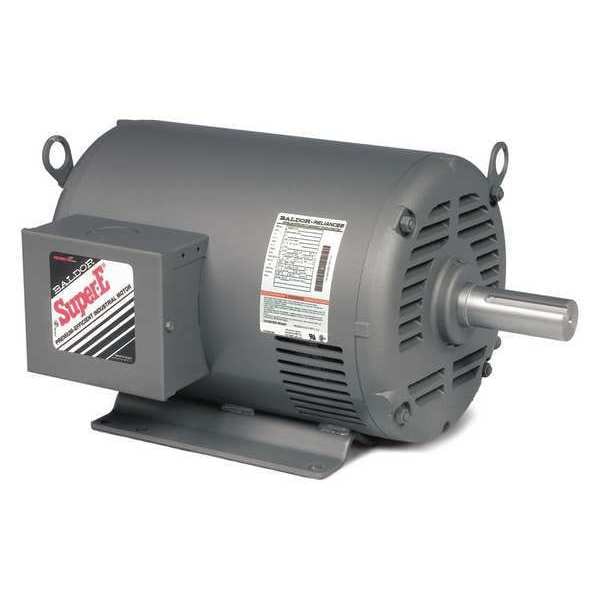

Baldor-Reliance Three-Phase AC Induction Motor, 10 HP, 215T Frame, 230V AC, 460V AC Voltage, 1,770 Nameplate RPM EHM3313T - main

Three-Phase AC Induction Motor, 10 HP, 215T Frame, 230V AC, 460V AC Voltage, 1,770 Nameplate RPM

  • Mfr # EHM3313T

  • Zoro # G7162465

product price:  $1,766.99
/ea
Free Shipping & Returns

Key Features

HP
10
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.5/25/26.4 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EHM3313T
Zoro #
G7162465
UPC #
781568425121
Country of Origin
United States

Dimensions

Length Less Shaft
14 1/16 in
Overall Length
17 7/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in

Details

Item
AC Induction Motor
HP
10
Nameplate RPM
1,770
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
12.5/25/26.4 A
Frame
215T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
91.7 %
Standards
CSA, RoHS Compliant, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
NEMA Design
B
Usable @ 208V
Yes
Duty Cycle
Continuous
Removable Base
Regreasable
Part Winding Start Capable
No

Description

Here is the revised description:

The BALDOR-RELIANCE - EHM3313T is a 3-Phase AC Induction Motor designed for various industrial applications. This motor converts electrical energy into mechanical energy through electromagnetic induction, making it an essential component in power transmission and pneumatics systems where rotational motion is required.

Key Features of the BALDOR-RELIANCE - EHM3313T:

  • CC Number: The unique identifier assigned by the Electrical Apparatus Service Association (EASA) to classify and track this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: Designed for continuous operation under specified conditions.
  • Frame: A 215T frame houses and supports the internal parts of the motor conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: Draws a maximum current of 12.5/25/26.4 A when operating at full capacity, crucial for determining power supply requirements and ensuring safe operation.
  • Inverter Rated: Compatible with a variable frequency drive that can adjust speed and torque within the specified ranges.
  • Nominal Efficiency: Has an efficiency rating of 91.7% under standard testing conditions.
  • Voltage Compatibility: Rated for operation within voltage levels ranging from 200V AC to 460V AC as per manufacturer's specifications
