Shop BALDOR-RELIANCE

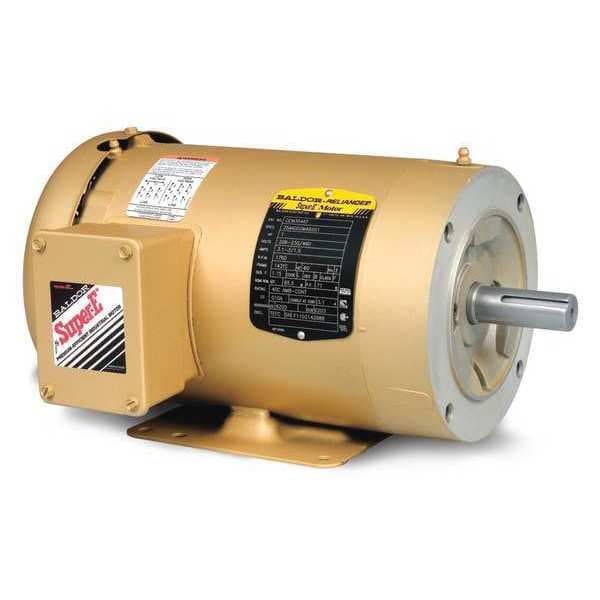

Three-Phase AC Induction Motor, 15 HP, 215TC Frame, 230V AC, 460V AC Voltage, 3,500 Nameplate RPM

  • Mfr # CEM3713T

  • Zoro # G7067107

product price:
$
2,935.99
/ea
Additional $110.00 delivery surcharge applies per item.
See details

Key Features

HP
15
Nameplate RPM
3,500
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
17/34/36.8 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM3713T
Zoro #
G7067107
UPC #
781568603628
Country of Origin
United States

Dimensions

Length Less Shaft
18 1/8 in
Overall Length
21 1/4 in
Shaft Dia.
1 3/8 in
Shaft Length
3 1/8 in
Frame Size
215TC
Shaft Diameter
1 3/8 in
Wire Rope Length
21 1/4 in
Length
21 1/4 in

Details

Item
AC Induction Motor
HP
15
Nameplate RPM
3,500
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
17/34/36.8 A
Frame
215TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
91 %
Standards
CSA EEV, NEMA Premium, UR
CC Number
CC010A
NEMA Design
A
Motor Thermal Protection
None
Inverter Rated
Yes
Full Load Amps @ 50Hz
40.8/20.4 A
Part Winding Start Capable
No
Duty Cycle
Continuous
RPM @ 50Hz
3,500
Usable @ 208V
Usable at 208V
Removable Base
Regreasable
HP @ 50Hz
15 hp
Voltage @ 50Hz
190/380 V
Bearing Lubrication Type
Regreasable
Frame Material
Steel
Nameplate RPM @ 50 Hz
985/965/970/975 RPM
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Insulation Class
F
Frequency
60 Hz
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.15
Ambient Temperature - Maximum
40 Degrees C
Full Load Current @ 50 Hz
40.8/20.4 A
Mounting Position
Horizontal
Efficiency Rating
NEMA Premium Efficiency
NEMA Design Class
A
Number of Speeds
1
Application
General Purpose
Motor Enclosure Type
Totally Enclosed Fan Cooled
Full Load Current @ 60 Hz
17/34/36.8 A
Nameplate Horsepower @ 50 Hz
15 hp
Inverter Rating
Inverter Rated

Description

AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 15 HP, Nameplate RPM 3,500, Frame 215TC, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 17/34/36.8 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 91 Percent, 3,001-3,600, CSA EEV, NEMA Premium, UR
