Shop BALDOR-RELIANCE

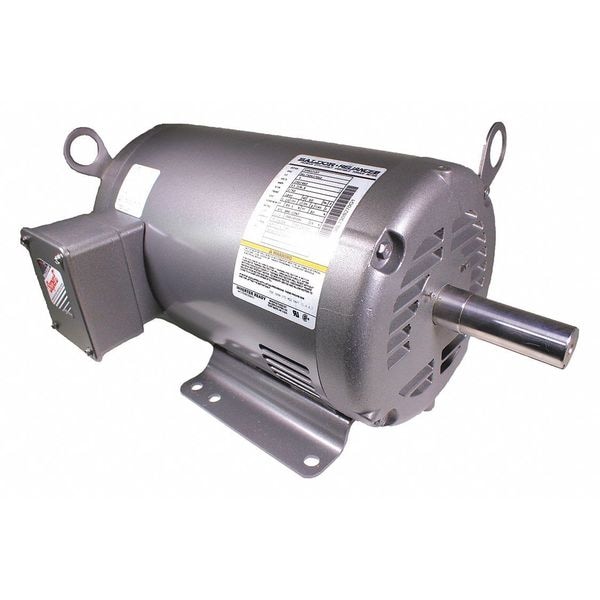

Three-Phase AC Induction Motor, 5 HP, 184T Frame, 230V AC, 460V AC Voltage, 1,750 Nameplate RPM

  • Mfr # EHM3218T

  • Zoro # G7146977

product price:
$
975.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
1,750
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.2/14/6.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EHM3218T
Zoro #
G7146977
UPC #
781568424582
Country of Origin
United States

Dimensions

Length Less Shaft
13 3/4 in
Overall Length
16 1/2 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Shaft Diameter
1 1/8 in
Frame Size
184T
Wire Rope Length
16 1/2 in

Details

Item
AC Induction Motor
HP
5
Nameplate RPM
1,750
Voltage
230V AC, 460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
13.2/14/6.6 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,701-1,800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Standard
Nominal Efficiency
89.5 %
Standards
CSA, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
NEMA Design
B
Removable Base
Regreasable
Part Winding Start Capable
No
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Motor Enclosure Type
Open Drip Proof
Application
General Purpose
Nameplate Voltage @ 50 Hz
380V AC, 400V AC, 415V AC
Frame Material
Steel
NEMA Design Class
B
Mounting Position
Horizontal
Number of Speeds
1
Nameplate RPM @ 50 Hz
2,925/2,935/2,940/2,895/2,905/2,915 RPM
Frequency
60 Hz
Inverter Rating
Inverter Rated
Ambient Temperature - Maximum
40 Degrees C
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Insulation Class
F
Bearing Lubrication Type
Regreasable
Full Load Current @ 60 Hz
13.2/14/6.6 A

Description

AC Induction Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1,750, Frame 184T, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 13.2/14/6.6 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, 1,701-1,800, CSA, UR
