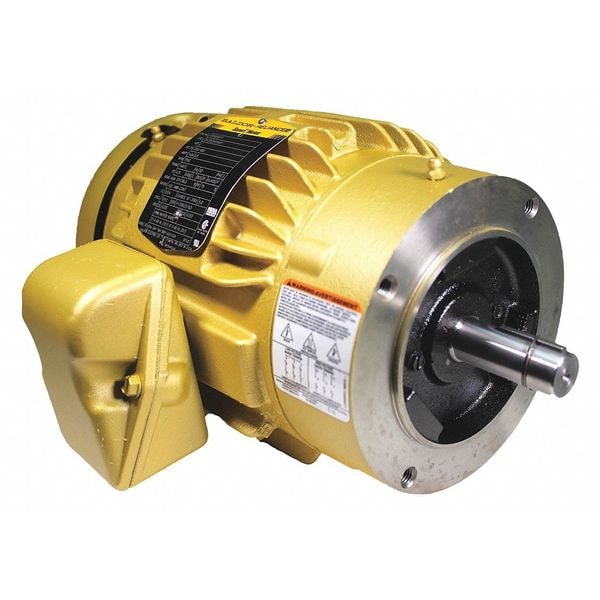

Baldor-Reliance Three-Phase General Purpose Motor, 1 1/2 HP, 145TC Frame, 208-230/460V AC Voltage VEM3584T - main

Three-Phase General Purpose Motor, 1 1/2 HP, 145TC Frame, 208-230/460V AC Voltage

  • Mfr # VEM3584T

  • Zoro # G7924777

product price:  $1,271.99
/ea
Free Shipping & Returns

Key Features

HP
1 1/2
Nameplate RPM
1765 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
4.6/2.3 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
VEM3584T
Zoro #
G7924777
UPC #
781568154090
Country of Origin
United States

Dimensions

Length Less Shaft
11 1/16 in
Overall Length
13 in
Shaft Dia.
7/8 in
Shaft Length
1 7/8 in
Manufacturers Warranty Length
3 yr
Frame Size
145TC
Shaft Diameter
7/8 in

Details

Item
General Purpose Motor
HP
1 1/2
Nameplate RPM
1765 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
4.6/2.3 A
Frame
145TC
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Motor Thermal Protection
None
Includes
Conduit Box
Footnotes
1
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Usable at 208V
NEMA Design
B
Duty Cycle
Continuous
Weight
59 lb
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Inverter Rating
Inverter Rated
Nameplate RPM @ 50 Hz
1,425 RPM
Insulation Class
F
Full Load Current @ 60 Hz
4.6/2.3 A
Manufacturers Warranty
3 yr
Nameplate Service Factor @ 60 Hz
1.15
Application
General Purpose
NEMA Design Class
B
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Ball
Efficiency Rating
NEMA Premium Efficiency
Shaft Design
Keyed
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 1/2 HP, Nameplate RPM 1765 rpm, Frame 145TC, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 4.6/2.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800
