  6. Three-Phase General Purpose Motor, 1 HP, 143T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM

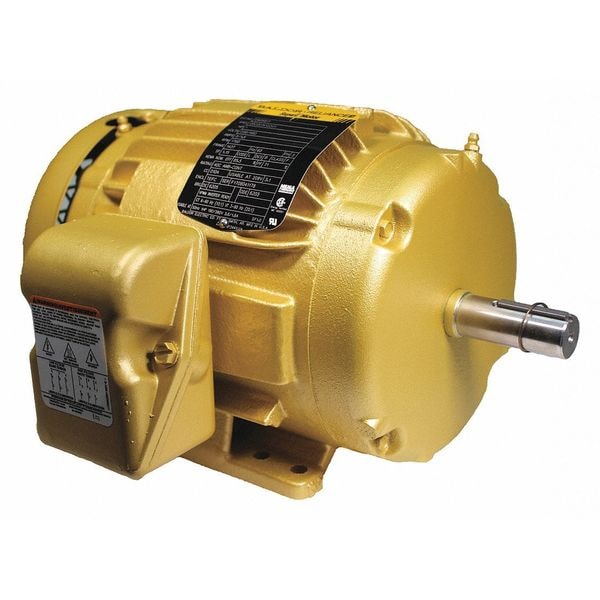

Baldor-Reliance Three-Phase General Purpose Motor, 1 HP, 143T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM EM3581T - main

Three-Phase General Purpose Motor, 1 HP, 143T Frame, 208-230/460V AC Voltage, 1760 rpm Nameplate RPM

  • Mfr # EM3581T

  • Zoro # G8313444

product price:  $1,235.99
/ea
Free Shipping & Returns

Key Features

HP
1
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3/1.5 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
EM3581T
Zoro #
G8313444
UPC #
781568138922
Country of Origin
United States

Dimensions

Length Less Shaft
10 1/4 in
Overall Length
12 1/2 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr

Details

Item
General Purpose Motor
HP
1
Nameplate RPM
1760 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
3/1.5 A
Frame
143T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Cast Iron
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC031A
Inverter Rated
Yes
Motor Thermal Protection
None
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Yes
Usable @ 200V
No
Weight
54 lb

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1 HP, Nameplate RPM 1760 rpm, Frame 143T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 3/1.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
