Shop BALDOR-RELIANCE

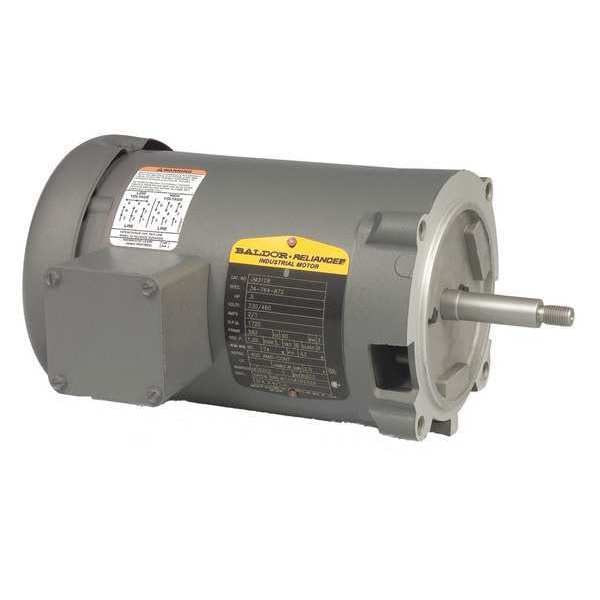

Three-Phase General Purpose Motor, 1/2 HP, 56J Frame, 230V AC, 460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # JM3460

  • Zoro # G7090478

product price:  $470.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Full Load Amps
1.2/2.4/3.1 A
Frame
56J
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
JM3460
Zoro #
G7090478
UPC #
781568112991
Country of Origin
United States

Dimensions

Length Less Shaft
9 7/16 in
Overall Length
11 13/16 in
Shaft Dia.
5/8 in
Shaft Length
2 3/8 in
Frame Size
56J
Shaft Diameter
5/8 in

Details

Item
General Purpose Motor
HP
1/2
Nameplate RPM
3,450
Voltage
230V AC, 460V AC
Full Load Amps
1.2/2.4/3.1 A
Frame
56J
Motor Bearings
Ball
Motor Service Factor
1.6
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3,001-3,600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Vertical
Motor Shaft Design
Threaded
Nominal Efficiency
70 %
Standards
CSA, RoHS Compliant, UR
CC Number
CC031A
Inverter Rated
Not Inverter Rated
Motor Thermal Protection
None
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Part Winding Start Capable
No
NEMA Design Class
B
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Efficiency Rating
Premium Efficiency (IE3)
Full Load Current @ 60 Hz
1.2/2.4/3.1 A
Motor Enclosure Type
Totally Enclosed Fan Cooled
Nameplate RPM @ 50 Hz
2925/2935/2940/2895/2905/2915 RPM
Number of Speeds
1
Shaft Design
Threaded
Nameplate Voltage @ 50 Hz
380V AC, 415V AC
Nameplate Service Factor @ 60 Hz
1.6
Frame Material
Steel
Application
Pump
Frequency
60 Hz
Bearing Type
Ball

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 1/2 HP, Nameplate RPM 3,450, Frame 56J, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 1.2/2.4/3.1 A, Not Applicable Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.6, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 70 Percent, 3,001-3,600, CSA, RoHS Compliant, UR
