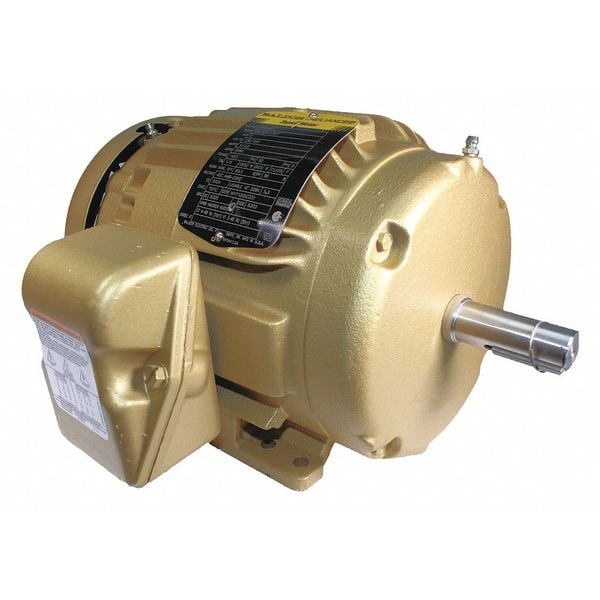

Three-Phase General Purpose Motor, 2 HP, 145T Frame, 208-230/460V AC Voltage, 3490 rpm Nameplate RPM
Mfr # EM3586T
Zoro # G8330393
product price:Â $1,232.99
/ea
Free Shipping & Returns
Key Features
HP
2
Nameplate RPM
3490 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
5/2.5 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
MFR #
EM3586T
Zoro #
G8330393
UPC #
781568677988
Country of Origin
United States
Dimensions
Length Less Shaft
10 1/4 in
Overall Length
12 1/2 in
Shaft Dia.
7/8 in
Shaft Length
2 1/4 in
Manufacturers Warranty Length
3 yr
Description
General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 3490 rpm, Frame 145T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5/2.5 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 85.5 Percent, Continuous Duty, 3001-3600, CSA, CSA EEV, UR
