Shop BALDOR-RELIANCE

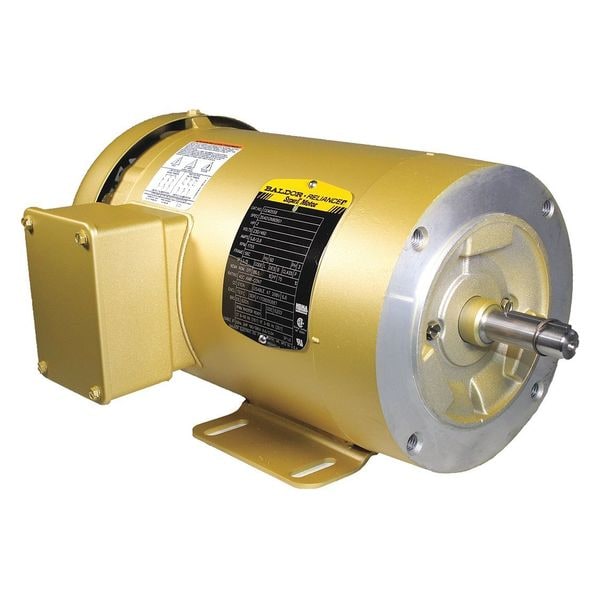

Three-Phase General Purpose Motor, 2 HP, 56C Frame, 208-230/460V AC Voltage, 1755 rpm Nameplate RPM

  • Mfr # CEM3558

  • Zoro # G8279451

product price:
$
1,142.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
1755 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5.8/2.9 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM3558
Zoro #
G8279451
UPC #
781568422762
Country of Origin
United States

Dimensions

Length Less Shaft
12 1/4 in
Overall Length
14 1/8 in
Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Manufacturers Warranty Length
3 yr
Frame Size
56C
Shaft Diameter
5/8 in
Wire Rope Length
14 1/8 in
Length
14 1/8 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
1755 rpm
Voltage
208-230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5.8/2.9 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
1701-1800
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
86.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
Yes
Includes
Conduit Box
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Usable at 208V
Weight
47 lb
Usable @ 200V
Not Usable at 200V
NEMA Design
B
Duty Cycle
Continuous
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC
Insulation Class
F
Manufacturers Warranty
3 yr
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Totally Enclosed Fan Cooled
Frequency
60 Hz
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C
Product Type
General Purpose Motor
Application
General Purpose
Shaft Design
Keyed
Number of Speeds
1
Full Load Current @ 60 Hz
5.8/2.9 A
Nameplate RPM @ 50 Hz
1,480/1,485/1,470/1,475 RPM
Frame Material
Steel
Inverter Rating
Inverter Rated

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 2 HP, Nameplate RPM 1755 rpm, Frame 56C, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 5.8/2.9 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 86.5 Percent, Continuous Duty, 1701-1800, CSA, CSA EEV, UR
