Shop BALDOR-RELIANCE

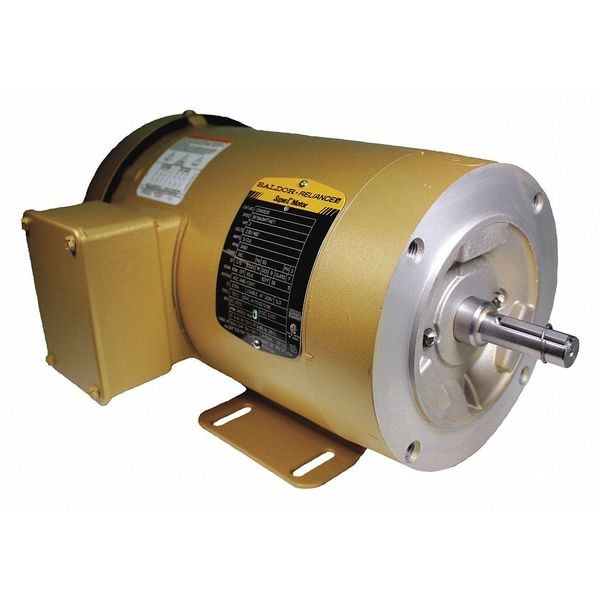

Three-Phase General Purpose Motor, 2 HP, 56C Frame, 230/460V AC Voltage, 3490 rpm Nameplate RPM

  • Mfr # CEM3555

  • Zoro # G8400917

product price:  $1,016.99
/ea
Free Shipping & Returns

Key Features

HP
2
Nameplate RPM
3490 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5/2.5 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CEM3555
Zoro #
G8400917
UPC #
781568422748
Country of Origin
United States

Dimensions

Length Less Shaft
11 3/8 in
Overall Length
13 1/4 in
Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Manufacturers Warranty Length
3 yr
Shaft Diameter
5/8 in
Frame Size
56C
Wire Rope Length
13 1/4 in

Details

Item
General Purpose Motor
HP
2
Nameplate RPM
3490 rpm
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
5/2.5 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
85.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Includes
Conduit Box
Inverter Rated
Yes
Motor Thermal Protection
None
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 200V
Not Usable at 200V
Weight
47 lb
Usable @ 208V
Usable at 208V
NEMA Design
B
Duty Cycle
Continuous
Full Load Current @ 60 Hz
5/2.5 A
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Ambient Temperature - Maximum
40 Degrees C
Application
General Purpose
Efficiency Rating
NEMA Premium Efficiency
Nameplate RPM @ 50 Hz
2,955/2,960/2,965/2,945/2,950 RPM
NEMA Design Class
B
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.15
Motor Enclosure Type
Totally Enclosed Fan Cooled
Manufacturers Warranty
3 yr
Number of Speeds
1
Frame Material
Steel
Bearing Type
Ball
Nameplate Voltage @ 50 Hz
190V AC, 208-230/460V AC, 380V AC
Insulation Class
F
Shaft Design
Keyed

Description

The BALDOR-RELIANCE - CEM3555 is a 3-phase AC General Purpose Motor. This motor is designed to convert electrical energy into mechanical energy, enabling it to power various types of machinery in industrial and commercial settings. It's versatile enough for use across different sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - CEM3555:

  • CC Number: The unique identifier assigned by EASA classifies this motor based on its design, specifications, and performance characteristics.
  • Duty Cycle: This motor is designed for continuous operation within its specified limits.
  • Frame: Its 56C frame size conforms to standard specifications for compatibility and interchangeability.
  • Full Load Amps: At full capacity, this motor will draw a maximum current of 5/2.5 A.
  • Certification: NEMA Premium(R) Rated certification indicates that the motor meets certain environmental and energy efficiency standards.
  • Inverter Rated: Yes - this feature provides potential for controlled speed and torque within the product's specifications.
  • Motor Bearings: The inclusion of ball bearings aims to minimize friction between moving parts, potentially facilitating smoother operation under varying load conditions
