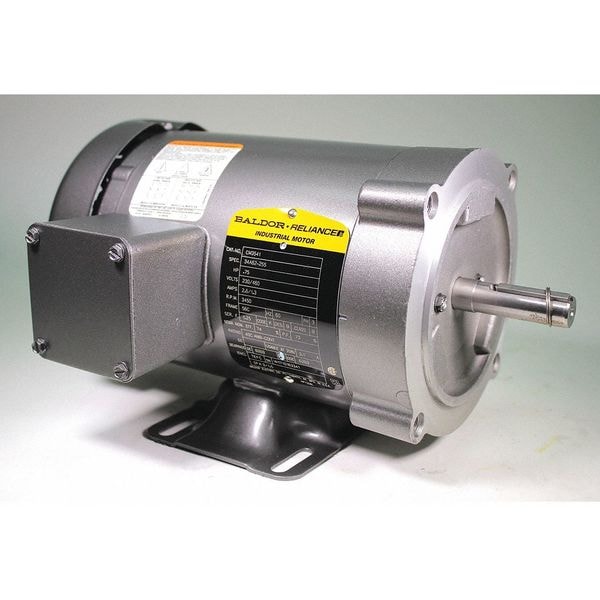

Baldor-Reliance Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3,450 Nameplate RPM CM3541 - main

Three-Phase General Purpose Motor, 3/4 HP, 56C Frame, 230/460V AC Voltage, 3,450 Nameplate RPM

  • Mfr # CM3541

  • Zoro # G7961782

product price:  $532.99
/ea
Free Shipping & Returns

Key Features

HP
3/4
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.6/1.3 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
CM3541
Zoro #
G7961782
UPC #
781568110140
Country of Origin
United States

Dimensions

Length Less Shaft
9 1/2 in
Overall Length
11 3/8 in
Shaft Dia.
5/8 in
Shaft Length
1 15/16 in
Manufacturers Warranty Length
2 yr
Shaft Diameter
5/8 in
Frame Size
56C

Details

Item
General Purpose Motor
HP
3/4
Nameplate RPM
3,450
Voltage
230/460V AC
Motor Mounting Type
C-Face
Full Load Amps
2.6/1.3 A
Frame
56C
Motor Bearings
Ball
Motor Service Factor
1.25
Motor Design
Three-Phase
Motor Enclosure Design
Totally Enclosed Fan Cooled
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-220/440V AC, 208-230/460V AC, 230/460V AC
Hz
60 Hz
Ins. Class
B
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
Horizontal
Motor Shaft Design
Keyed
Nominal Efficiency
74 %
Standards
CSA, UR
CC Number
CC031A
Inverter Rated
No
Footnotes
30
Motor Thermal Protection
None
Includes
Conduit Box
Capacitor Required
No
Green Certification or Other Recognition
NEMA Premium(R) Rated
Usable @ 208V
Usable at 208V
Weight
22 lb
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
NEMA Design
B
Full Load Current @ 60 Hz
2.6/1.3 A
Inverter Rating
Not Inverter Rated
Nameplate Voltage @ 50 Hz
200V AC, 208V AC, 230V AC, 400V AC, 460V AC
Bearing Type
Ball
Application
General Purpose
Manufacturers Warranty
2 yr
Motor Enclosure Type
Totally Enclosed Fan Cooled
Efficiency Rating
NEMA Premium Efficiency
NEMA Design Class
B
Frequency
60 Hz
Nameplate Service Factor @ 60 Hz
1.25
Product Type
General Purpose Motor
Number of Speeds
1
Nameplate RPM @ 50 Hz
2,905/2,915/2,920/2,835/2,860/2,870 RPM
Insulation Class
B
Frame Material
Steel
Ambient Temperature - Maximum
40 Degrees C
Shaft Design
Keyed

Description

General Purpose Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 3/4 HP, Nameplate RPM 3,450, Frame 56C, Voltage 230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 2.6/1.3 A, C-Face Motor Mounting Type, Motor Thermal Protection None, Ins. Class B, Motor Service Factor 1.25, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 74 Percent, Continuous Duty, 3001-3600, CSA, UR, Includes Conduit Box
