Shop BALDOR-RELIANCE

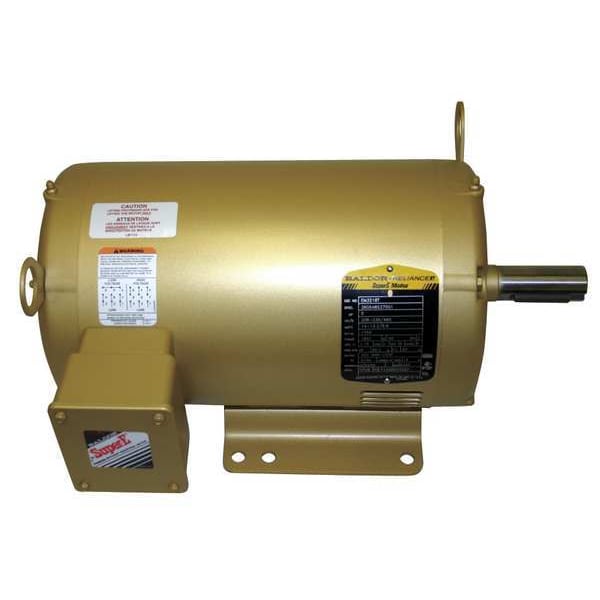

Three-Phase General Purpose Motor, 5 HP, 215T Frame, 208-230/460V AC Voltage, 1160 rpm Nameplate RPM

  • Mfr # EM3309T

  • Zoro # G8279381

product price:  $1,830.99
/ea
Free Shipping & Returns

Key Features

HP
5
Nameplate RPM
1160 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
14.8/7.4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3309T
Zoro #
G8279381
UPC #
781568104613
Country of Origin
United States

Dimensions

Length Less Shaft
14 1/16 in
Overall Length
17 7/16 in
Shaft Dia.
1 3/8 in
Shaft Length
3 3/8 in
Manufacturers Warranty Length
3 yr
Frame Size
215T
Shaft Diameter
1 3/8 in

Details

Item
General Purpose Motor
HP
5
Nameplate RPM
1160 rpm
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
14.8/7.4 A
Frame
215T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
1,101-1,200
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
89.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Motor Thermal Protection
None
Inverter Rated
Yes
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
145 lb
Duty Cycle
Continuous
Inverter Rating
Inverter Rated
Product Type
General Purpose Motor
Motor Enclosure Type
Open Drip Proof
Application
General Purpose
NEMA Design Class
B
Ambient Temperature - Maximum
40 Degrees C
Manufacturers Warranty
3 yr
Efficiency Rating
NEMA Premium Efficiency
Nameplate Service Factor @ 60 Hz
1.15
Bearing Type
Ball
Frequency
60 Hz
Full Load Current @ 60 Hz
14.8/7.4 A
Insulation Class
F
Shaft Design
Keyed
Nameplate RPM @ 50 Hz
940 RPM
Mounting Position
All Angle
Number of Speeds
1

Description

General Purpose Motor, Three-Phase, Open Drip Proof Motor Enclosure Design, 5 HP, Nameplate RPM 1160 rpm, Frame 215T, Voltage 208-230/460V AC, 60 Hz Hz, Three Phase, Full Load Amps 14.8/7.4 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Steel, Max. Ambient Temp. 40 Degrees C, CW/CCW Motor Shaft Rotation, Nominal Efficiency 89.5 Percent, Continuous Duty, 1,101-1,200, CSA, CSA EEV, UR
