Shop BALDOR-RELIANCE

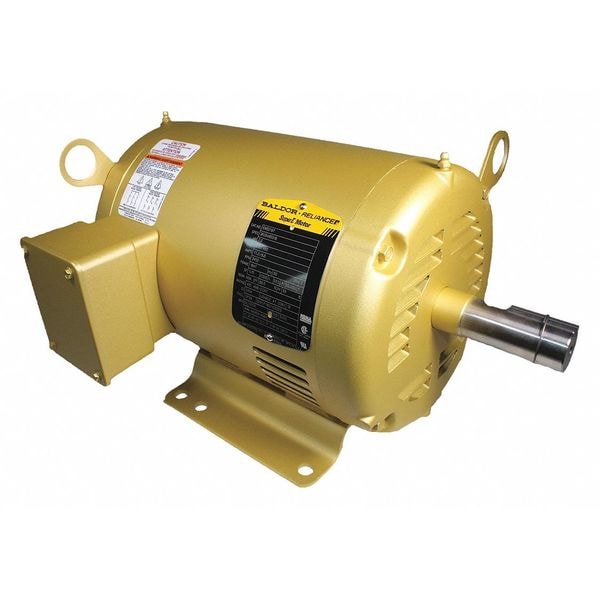

Three-Phase General Purpose Motor, 7 1/2 HP, 184T Frame, 208-230/460V AC Voltage

  • Mfr # EM3219T

  • Zoro # G7490226

product price:  $1,519.99
/ea
Free Shipping & Returns

Key Features

HP
7 1/2
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
17.2/8.6 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
EM3219T
Zoro #
G7490226
UPC #
781568104644
Country of Origin
United States

Dimensions

Length Less Shaft
12 1/4 in
Overall Length
15 in
Shaft Dia.
1 1/8 in
Shaft Length
2 3/4 in
Manufacturers Warranty Length
3 yr
Frame Size
184T
Shaft Diameter
1 1/8 in
Wire Rope Length
15 in

Details

Item
General Purpose Motor
HP
7 1/2
Nameplate RPM
3,450
Voltage
208-230/460V AC
Motor Mounting Type
Rigid Base
Full Load Amps
17.2/8.6 A
Frame
184T
Motor Bearings
Ball
Motor Service Factor
1.15
Motor Design
Three-Phase
Motor Enclosure Design
Open Drip Proof
RPM Range
3001-3600
Phase
Three
No. of Speeds
1
Motor Application
General Purpose
Motor Shaft Rotation
CW/CCW
Voltage Compatibility
200-230/460V AC, 208-230/460V AC, 460V AC
Hz
60 Hz
Ins. Class
F
Max. Ambient Temp.
40 Degrees C
Motor Frame Material
Steel
Motor Mounting Position
All Angle
Motor Shaft Design
Keyed
Nominal Efficiency
88.5 %
Standards
CSA, CSA EEV, UR
CC Number
CC010A
Inverter Rated
No
Motor Thermal Protection
None
Includes
Conduit Box
Green Certification or Other Recognition
NEMA Premium(R) Rated
NEMA Design
B
Duty Cycle
Continuous
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Weight
91 lb
Bearing Type
Ball
Application
General Purpose
Nameplate RPM @ 50 Hz
1,480/1,485/1,470/1,475 RPM
Ambient Temperature - Maximum
40 Degrees C
Inverter Rating
Not Inverter Rated
Mounting Position
All Angle
Manufacturers Warranty
3 yr
Efficiency Rating
NEMA Premium Efficiency
Motor Enclosure Type
Open Drip Proof
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1.15
Number of Speeds
1
Full Load Current @ 60 Hz
17.2/8.6 A
Frequency
60 Hz
NEMA Design Class
B
Product Type
General Purpose Motor
Shaft Design
Keyed

Description

The BALDOR-RELIANCE - EM3219T is a 3-phase AC General Purpose Motor, primarily used in industrial and commercial settings. This motor converts electrical energy into mechanical energy to operate different types of machinery across various sectors, from manufacturing lines to HVAC systems.

Key Features of the BALDOR-RELIANCE - EM3219T:

  • CC Number: The unique identifier assigned by EASA for tracking based on design, specifications, and performance characteristics.
  • Duty Cycle: Continuous operation, a feature that is based on design specifications.
  • Frame: 184T size conforming to standard specifications for compatibility and interchangeability.
  • Full Load Amps: Maximum current draw at full capacity is 17.2/8.6 A, important for determining compatibility with power supply requirements.
  • NEMA Premium(R) Rated: Acknowledgment that the motor meets certain environmental and energy efficiency standards.
  • Horsepower (HP): Power output as per the product specification is 7 1/2 HP
  • Hertz (Hz): Operates at a specified frequency of electrical cycles per second which may influence speed and performance; as stated by manufacturer's guidelines, it operates at 60 Hz
