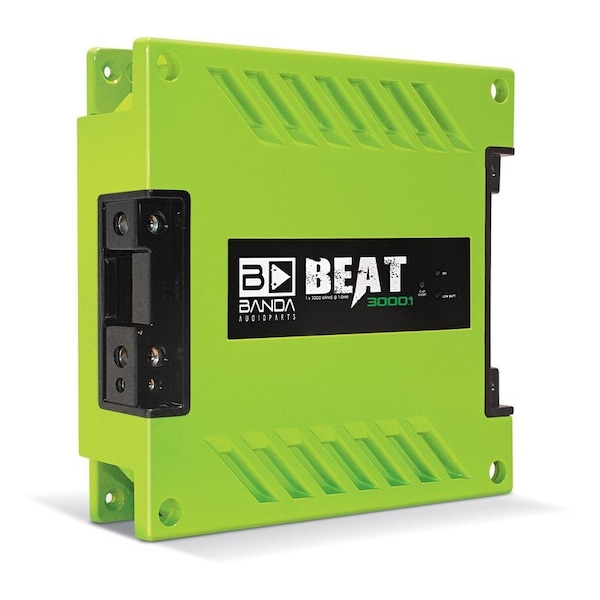

High Power Vehicle Audio Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 1 ohm
Mfr # BEAT3000.1GREEN
Zoro # G816449427
product price:Â $299.99
/ea
Free Shipping & Returns
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
BEAT3000.1GREEN
Zoro #
G816449427
UPC #
-
Country of Origin
Brazil
Description
* Class D vehicle audio amplifier* Total Power 14.4 at 1 Ohm: 3900 WRMS* Total Power 14.4 at 2 Ohms: 2900 WRMS* Total Power 12.6 at 1 Ohm: 3000 WRMS* Total Power 12.6 at 2 Ohms: 2300 WRMS* Efficiency at 2 Ohms: 78%* Efficiency at 1 Ohm: 71%* Input Voltage: 9 to 15V* Input Impedance: 100K Ohms* THD+Noise: less than 1%* Input Sensitivity: 110mV to 4V* SNR: 80dB* Frequency Response: 20 to 20KHz -3dBs* HPF Subsonic: 20 to 80Hz at 12dB/octave Linkwitz-Riley* LPF Crossover: 80 to 20kHz at 12dB/octave Linkwitz-Riley* Recommended Fuse: 150 A* Current at Rest: 1.5 A* Average Current Draw Sinusoidal: 360 A* Average Current Draw Music: 180 A* Power Wire Gauge min. Recommended: 21mm / 4 AWG* Speaker Wire Gauge min. Recommended: 2 x 4mm / 2 x 11 AWG* Weight Lb: 7.6, Height in: 2.2, Width in: 8.4, Depth in:
