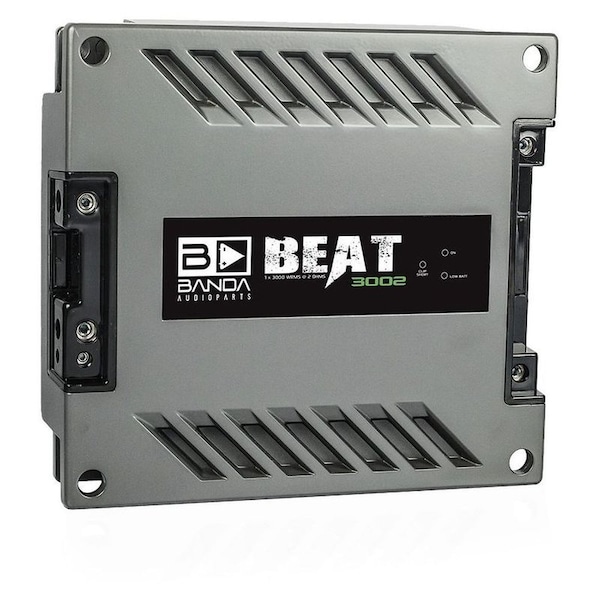

High Power Vehicle Audio Mono Bass Amplifier w/Subsonic Filter and Low Pass Filter Stable at 2 ohms

Class D Vehicle Audio Amplifier Total Power 14.4 2 Ohms: 3500 WRMS Total Power 14.4 4 Ohms: 2600 WRMS Total Power 12.6 2 Ohms: 3000 WRMS Total Power 12.6 4 Ohms: 2150 WRMS Efficiency 4 Ohms: 81% Efficiency 2 Ohms: 72% Input Voltage: 9 to 15V Input Impedance: 100K Ohms THD+Noise: less than 1% Input Sensitivity: 135mV to 4V SNR: 80dB Frequency Response: 20 to 20KHz -3dBs HPF Subsonic: 20 to 80Hz 12dB/octave Linkwitz-Riley LPF Crossover: 80 to 20kHz 12dB/octave Linkwitz-Riley Recommended Fuse: 150 A Current at Rest: 1.5 A Average Current Draw Sinusoidal: 360 A Average Current Draw Music: 180 A Power Wire Gauge min. Recommended: 21mm / 4 AWG Speaker Wire Gauge min. Recommended: 2 x 4mm / 2 x 11 AWG Weight Lb: 7.6 Height in: 2.2 Width in: 8.4 Depth in: 9.7
