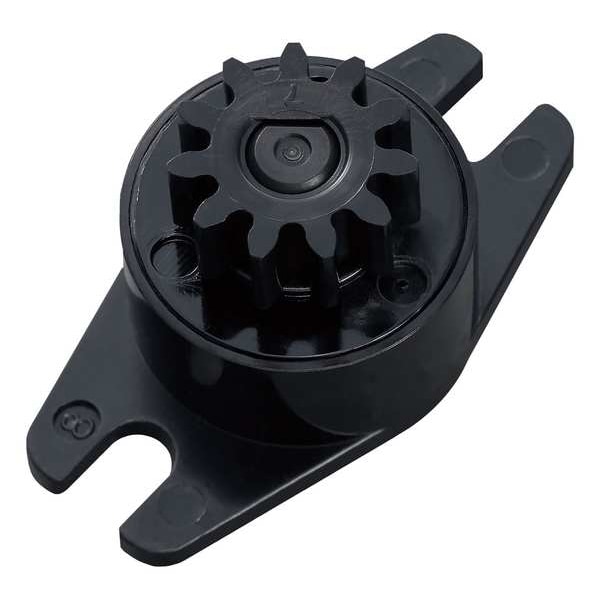

Fixed Rotary Damper, Both Directions
- Mfr # FRT-C2-301-G1
- Zoro # G2679839
product price:Â
$
8.99
/ea
Sold in multiples of 2 for
$17.98
Key Features
Max. Rotation Speed
50 rpm
Type
Rotary
Max. Cycle Rate
10 cycles/min
Operating Temp.
0 Degrees to 50 Degrees C
Application
Control speed, Dampen drivers
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- FRT-C2-301-G1
- Zoro #
- G2679839
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Overall Width
- 15 mm
- Shaft Width
- 10 2/5 mm
- Overall Length
- 27 1/2 mm
- Wire Rope Length
- 27 1/2 mm
- Length
- 27 1/2 mm
Details
- Item
- Rotary Damper
- Max. Rotation Speed
- 50 rpm
- Type
- Rotary
- Max. Cycle Rate
- 10 cycles/min
- Operating Temp.
- 0 Degrees to 50 Degrees C
- Application
- Control speed, Dampen drivers
- Shaft Material
- Polyacetal
- Damping Direction
- Both directions
- Body Material
- Polycarbonate
- Gear Material
- Polyacetal
- Torque
- 300 gf-cm
- Operating Temperature - Minimum
- 32 Degrees F
- System of Measurement
- Metric
- Center-to-Center Mounting Hole Distance
- 21 mm
- Dampening Direction
- Two-Sided Rotation
- Operating Temperature - Maximum
- 122 Degrees F
- Rotation Speed - Maximum
- 50 RPM
- Cycle Rate - Maximum
- 10 per min
- Shaft Type
- Gear
Description
Rotary Damper, Max. Rotation Speed 50 RPM, Max. Cycle Rate 10 per min, Operating Temp. 0 Degrees to 122 Degrees F, Body Material Polycarbonate, Shaft Material Steel, Gear Material Polyacetal, Damping Direction Both Directions, Application Dampen Drivers, Control Speed
