  9. 1/2 HP 2" Auto Double Seal Sewage Ejector Pump 240V

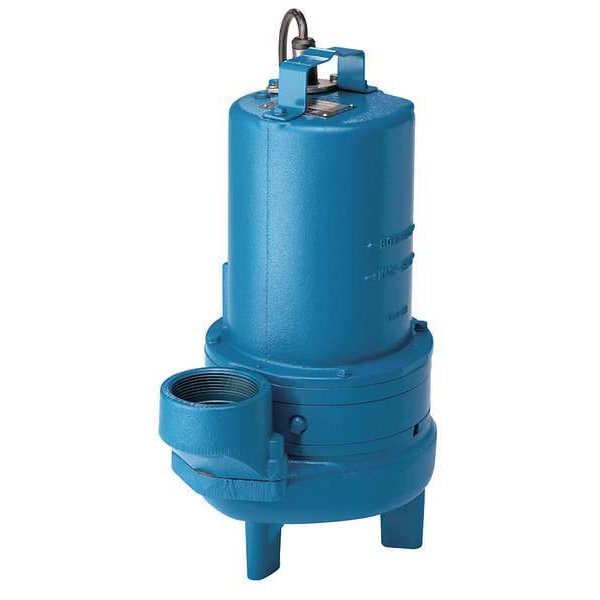

Barnes 1/2 HP 2" Auto Double Seal Sewage Ejector Pump 240V 2SEV522DS - main

1/2 HP 2" Auto Double Seal Sewage Ejector Pump 240V

  • Mfr # 2SEV522DS

  • Zoro # G2923971

product price: $1,346.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2SEV522DS
Zoro #
G2923971
UPC #
-
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Cord Length - Pumps
20 ft.
Diameter
12-5/8"
Height
20-39/50"
Manufacturers Warranty Length
2 yr
Cord Length
20 ft
Max. Dia. Solids
2"
Body Dia.
12 5/8 in
Overall Height
20 3/4 in
Discharge Dia.
2 in
Discharge Diameter
2 in
Width at Widest Point
12 5/8 in
Solids Diameter - Maximum
2 in
Body Diameter
12 5/8 in

Details

HP
1/2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Max. Head
35 ft
Impeller Material
Cast Iron
GPM of Water @ 30 Ft. of Head
35
Agency Compliance
CSA 108 File No. LR 16567, UL 778
Housing Material
Cast iron
Max. Head - Pumps
35 ft.
GPM of Water @ 25 Ft. of Head
52.5
Item
Sewage Ejector Pump
Pump Type
Automatic Operation
Phase
Single
Shaft Seal
Buna-N
Duty
Continuous
Amps - Pumps
6.00
Bearing Type
Ball
Switch Type
None
Motor RPM
3450
Item - Sewage Pumps
Double Seal Sewage Ejector Pump
GPM of Water @ 20 Ft. of Head
67
Impeller Material - Pumps
Cast Iron
Shaft Seal Material - Pumps
Nitrile Rubber
GPM of Water @ 35 Ft. of Head
15
Voltage
240V
Voltage - Pumps
240VAC
GPM of Water @ 15 Ft. of Head
85
Switch Type - Pumps
No Switch Included
GPM of Water @ 10 Ft. of Head
85
GPM of Water @ 5 Ft. of Head
85
Discharge NPT
2"
Motor Type
NEMA L Oil Filled, Squirrel Cage Induction
Max. Liquid Temp.
104 Degrees F
Amps
6.00 A
Pump Body Material
Cast Iron
Input Phase AC
1
Rated Voltage
240V AC
Switch Electrical Connection
No Switch Included
Discharge
2 in FNPT
Duty Cycle
Continuous
Flow Rate @ 20 Ft. of Head
67 gpm
Off Point
39 in
Discharge Standard
NPT
Discharge Gender
Female
RPM
3,450 RPM
Type
Automatic Operation
Current
6.00 A
Liquid Temperature - Maximum
104 Degrees F
Series
2SEV-DS
Shaft Seal Type
Double Mechanical
Discharge Orientation
Vertical
Shaft Seal Material
Nitrile Rubber
Frequency
60 Hz
Motor Housing Material
Cast Iron
Flow Rate @ 10 ft of Head
130 gpm
For Media Type
Sewage Water
Rotation Speed - Maximum
3,450 RPM
Standards
CSA 108 File No. LR 16567, UL 778
Power Source
Corded Electric
Feet of Head - Maximum
35 ft
Horsepower
1/2 hp
Volute Material
Cast Iron

Description

Sewage Ejector Pump, HP 1/2, Rated Voltage 240V AC, Phase - Pumps 1, Amps 6.00 A, Motor Type NEMA L Oil Filled, Squirrel Cage Induction, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Nitrile Rubber, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Off Point 39 in, Flow Rate @ 20 Ft. of Head 67 gpm, Max. Diameter Solids 2 in, Body Dia. 12 5/8 in, Width at Widest Point 12 5/8 in, Overall Height 20 3/4 in, Cord Length 20 ft
