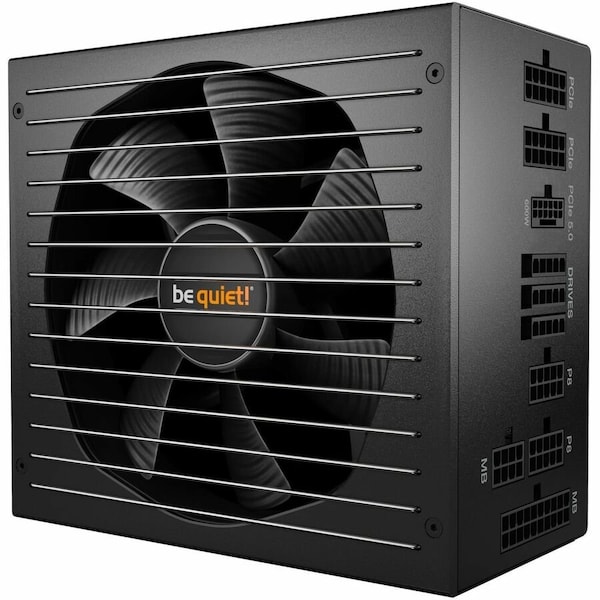

Be Quiet! STRAIGHT POWER 12 850W Power Supply BN515 - main

STRAIGHT POWER 12 850W Power Supply

  • Mfr # BN515

  • Zoro # G615836428

product price: $245.99
/ea
Free Shipping & Returns

Key Features

Frequency
60 Hz
Width
5.9 in
Energy Efficiency Certification
80 Plus Platinum, ENERGY STAR 8.0
Protection Type
Over Voltage, Short Circuit, Over Power, Surge, Under Voltage, Over Temperature, Over Current, Inrush Current
Efficiency
94%
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BN515
Zoro #
G615836428
UPC #
-
Country of Origin
China

Dimensions

Width
5.9 in
Height
3.4 in
Fan Diameter
135 mm

Details

Frequency
60 Hz
Energy Efficiency Certification
80 Plus Platinum, ENERGY STAR 8.0
Protection Type
Over Voltage, Short Circuit, Over Power, Surge, Under Voltage, Over Temperature, Over Current, Inrush Current
Efficiency
94%
Number of (6+2 pin) PCI Express Power Connectors
4
Output Power
850 W
Number of Fans
1
MTBF
100000 Hour
Number of +12V Rails
1
PCI Express Connector
Yes
Output Voltage Detail
12 V DC @ 0.5 A, 12 V DC @ 70.8 A, 5 V DC @ 25 A, 3.3 V DC @ 25 A, 5 V SB @ 3 A
Number of (4+4 pin) CPU Power Connectors
1
Maximum Operating Temperature
104°F (40°C)
Output Voltage
12 V DC, -12 V DC, 5 V DC, 3.3 V DC, 5 V SB
Energy Star
Yes
Fan Bearing Type
Fluid Dynamic Bearing
Package Contents
STRAIGHT POWER 12 850W Power Supply Thumb Screws Screws Cable Ties Velcro Cable Ties User Manual Languages OCK Slot Bracket with Switch / OCK Jumper SFX-to-ATX Adapter Bracket
Certifications & Standards
BSMI CB CCC CE cRUus cTUVus CU FCC RCM TU inV UKCA
Item
Power Supply
Number of SATA Power Connectors
9
Mounting
Internal
Input Voltage
230 V AC, 120 V AC
Color
Black

Description
