Beacon Morris

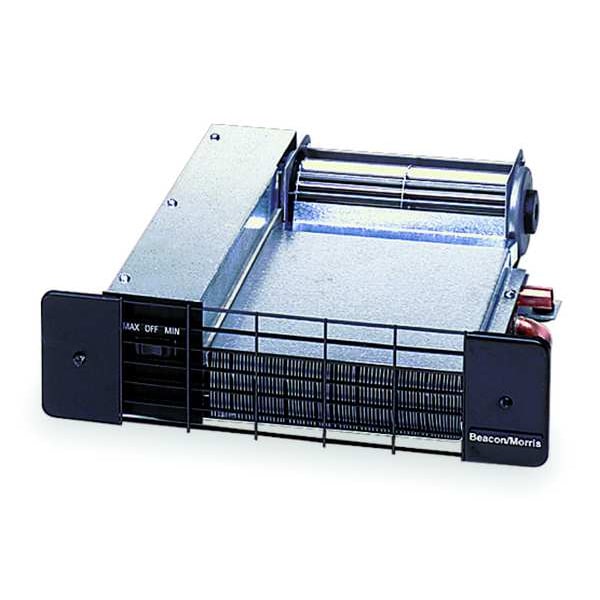

Hydronic Kickspace Heater, 5240 BtuH Max

product price: $266.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • For Use With 4E450,4E451,4E452,4E453,5E314,5E316
  • Amps AC 0.5 A
  • Width 12 1/4 in
  • Depth 12 3/4 in
  • Heater Voltage 115 V AC
See all product information

Product Information

Dimensions

Width 12 1/4 in
Depth 12 3/4 in
Height 4 in
Manufacturers Warranty Length 5 yr
Pipe Size 1/2 in
Overall Dimensions - H x W x D 4 in x 19 1/4 in x 12 3/4 in
Overall Depth 12 3/4 in
Grille Height 15 7/8 in
Rough-In Depth 12 1/4 in
Rough-In Width 12 3/4 in
Rough-In Height 4 in
Grille Width 7 7/8 in
Heating Element Diameter 1/2 in
Pipe Connection Size 1/2 in
Rough-In Dimensions - H x W x D 4 in x 12 3/4 in x 12 1/4 in
Overall Height 4 in
Overall Width 12 1/4 in

Details

Item Hydronic Kickspace Heater
For Use With 4E450,4E451,4E452,4E453,5E314,5E316
Amps AC 0.5 A
Heater Voltage 115 V AC
Air Flow Direction Horizontal
Air Flow 53 cfm
Correction Factor 0.8
Max. Heat @ 2GPM Flow @ 140 F Water Temp. 2,640 BtuH
Max. Heat @ 3GPM Flow @ 120 F Water Temp. 1,875 BtuH
Number of Speeds 2
Max. Heat @ 3GPM Flow @ 180 F Water Temp. 4,470 BtuH
Max. Heat @ 3GPM Flow @ 160 F Water Temp. 3,670 BtuH
Max. Heat @ 3GPM Flow @ 140 F Water Temp. 2,690 BtuH
Max. Operating Water Temp. 200 Degrees F
Max. Heat @ 2GPM Flow @ 180 F Water Temp. 4,375 BtuH
Hz 60
Max. Heat @ 2GPM Flow @ 160 F Water Temp. 3,590 BtuH
Max. Heat @ 2GPM Flow @ 200 F Water Temp. 5,127 BtuH
Standards ETL, ETLc Listed
Max. Heat @ 2GPM Flow @ 120 F Water Temp. 1,840 BtuH
Max. Heat @ 3GPM Flow @ 200 F Water Temp. 5,240 BtuH
Includes Grill and Mounting Hardware
Phase 1
Maximum Operating Water Temperature 200 Degrees F
Heating Method Hot Water
Pipe Connection Type 1/2 in, Non-Threaded
Housing Color Grey
Thermostat Included Unit-Mounted
Pipe Connection Straight Copper Tube
Product Type Kickspace Hydronic Heaters
Wattage Output 30.7 W
Amperage 0.5 A
Mounting Location Floor, Wall
Flow Rate 3 gpm
Heating Capacity 5,240 BtuH
Fan Voltage 115 V AC
Number of Settings 2
Grille Finish Enamel
Frequency 60 Hz
Housing Finish Black
Grille Material 16 ga Steel

Description

Product Type Kickspace Hydronic Heaters, Overall Height 4 in, Overall Width 12 1/4 in, Overall Depth 12 3/4 in, Rough-In Height 4 in, Rough-In Depth 12 1/4 in, Rough-In Width 12 3/4 in, Pipe Connection Size 1/2 in, Pipe Connection Type 1/2 in, Non-Threaded, Thermostat Included Unit-Mounted, Wattage Output 30.7 W, Air Flow 53 cfm, Air Flow Direction Horizontal, Amperage 0.5 A, Correction Factor 0.8, Fan Voltage 115 V AC, Flow Rate 3 gpm, Frequency 60 Hz, Grille Finish Enamel
