Shop BELDEN

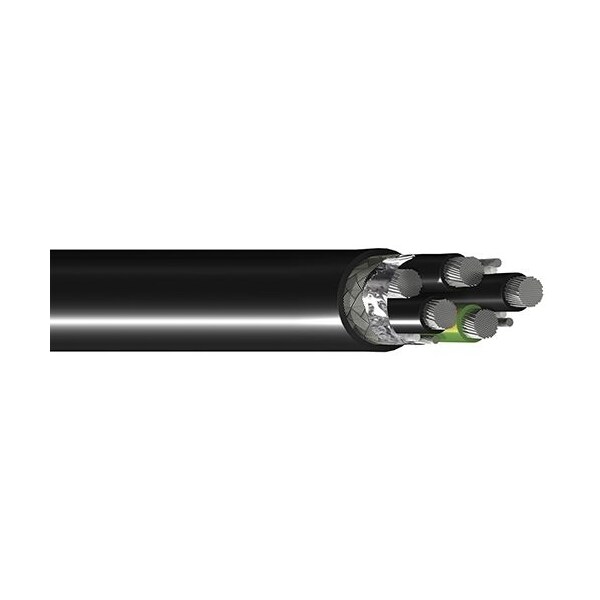

10-3C + GRD TYPE TC STR TNC, XLP/PVC FOIL/85% TC BRAID, 1000FT

  • Mfr # 29503 0105000

  • Zoro # G2848107

product price:  $16.59
/ea
Sold in multiples of 25 for $414.75
Additional $14.80 delivery surcharge applies per item.
See details

Key Features

Conductor Material
Tinned Copper
Shielding
Foil + Braid(s)
Color
Black
Insulation Material
PVC
Length
5000 ft
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
29503 0105000
Zoro #
G2848107
UPC #
612825136958
Country of Origin
Unknown

Dimensions

Length
5000 ft
AWG Size
10
Conductor Size/Gauge
10 AWG

Details

Conductor Material
Tinned Copper
Shielding
Foil + Braid(s)
Color
Black
Insulation Material
PVC
Material
Tinned or Coated Copper
NEC Articles
Article 336
Suitability - Outdoor
Yes
Conductor Count
3
UL Temp Rating
90°C Wet/Dry
PMSHA Specification
P-07-KA070003-MSHA
Other Specification
1000V UL Flexible Motor Supply
Put-Up Type
Reel
Conductor Material and Stranding
Tinned Copper - Stranded
Jacket
PVC
EU CE Mark
Yes
UL voltage rating
1000 V RMS (Flexible Motor Supply Cable)
Suitability - Oil Resistance
Yes
Suitability - Burial
Yes
Material@Insulation01
PVC - Polyvinyl Chloride
Suitability - Indoor
Yes
CSA Flammability
FT4
IEEE Flammability
1202, 383 Vertical Tray Flame Test (70,000 BTU)
Suitability - Sunlight Resistance
Yes
Material@OuterShield1 2
Tinned Copper (TC)
EU Directive 2015/863/EU
Yes
CSA AWM Specification
1000 V AWM I/II A/B
UL Flammability
UL1685 UL Loading
Conductor Configuration
3 Conductor
Stranding@Conductor1
105x30
Screen/Shield
Shielded
Type
Stranded
Product Type
Vfd
Voltage Range
1KV
Earth/Ground Wires
Yes
Jacketing Material
Pvc-Polyvinyl Chloride
Temperature Rating
90 Degrees Centigrade
