  11. 18-1P STR TNC FRPO BELDFOIL +, 55% TNC BRD SHD PVC JKT BLU, 1000FT

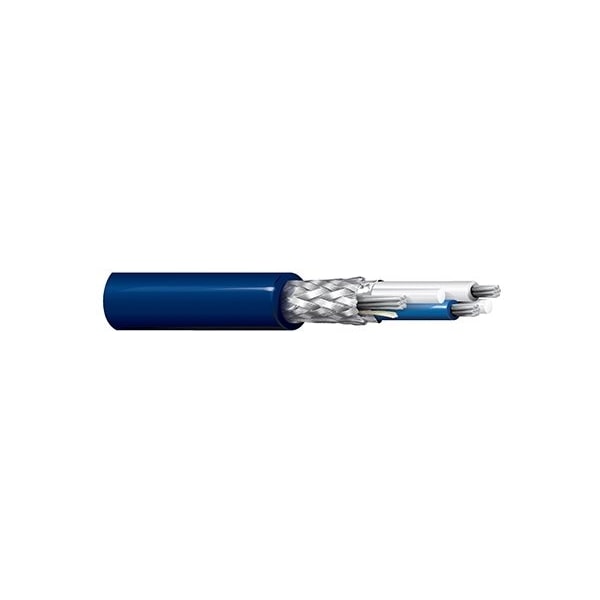

Belden 18-1P STR TNC FRPO BELDFOIL +, 55% TNC BRD SHD PVC JKT BLU, 1000FT 3072F C555000 - main

18-1P STR TNC FRPO BELDFOIL +, 55% TNC BRD SHD PVC JKT BLU, 1000FT

  • Mfr # 3072F C555000

  • Zoro # G2143548

product price: $8.79
/ea
Sold in multiples of 25 for $219.75

Key Features

Shielding
Foil + Braid(s)
Conductor Material
Tinned Copper
Length
5000 ft
Impedance
78 Ohm Nominal Impedance
Insulation Material
Polyolefin (PO, PE, PP)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3072F C555000
Zoro #
G2143548
UPC #
612825140108
Country of Origin
Unknown

Dimensions

Length
5000 ft
AWG Size
18

Details

Shielding
Foil + Braid(s)
Conductor Material
Tinned Copper
Impedance
78 Ohm Nominal Impedance
Insulation Material
Polyolefin (PO, PE, PP)
Color
Blue, Cairo
PMSHA Specification
P-MSHA-SC-182/7
UL voltage rating
600 V RMS (NEC Type TC)
Material@Insulation01
PP - Polypropylene
UL Flammability
UL 1685 FT4 Loading
Suitability - Sunlight Resistance
Yes
NEC Articles
Article 336;Article 725;Article 727;Article 800
Jacket
PVC
Material@OuterShield1 2
Tinned Copper (TC)
Suitability - Indoor
Yes
UL Temp Rating
75°C Dry
EU Directive 2015/863/EU
Yes
IEEE Flammability
IEEE 1202
Put-Up Type
Reel
EU CE Mark
Yes
Conductor Count
2
CSA Flammability
FT4
Stranding@Conductor1
7x26
Conductor Configuration
1 Pair
CPR Euroclass
Eca
Total Number of Pairs
1
Plenum
General Purpose (Cm, Cmg, Cmx)
Jacketing Material
Pvc-Polyvinyl Chloride
CSA
FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS
