Shop BELDEN

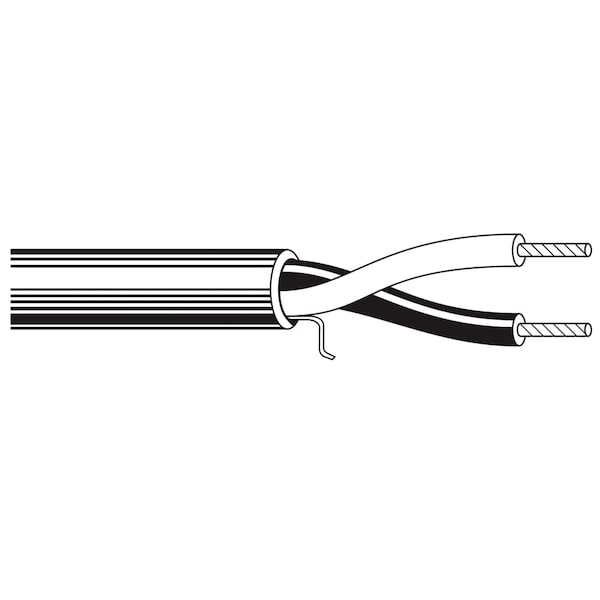

2 C, Black, Low Smoke Polyvinyl Chloride, 1000 ft

  • Mfr # 6200UE 010U1000

  • Zoro # G1149496

product price:  $0.68
/ea
Sold in multiples of 1000 for $680.00

Key Features

Cable Type
Bare Wire
Cable Length
1000 ft
Jacket Material
Polyvinyl Chloride (PVC), Flamarrest
Conductor Size
16 AWG (AMERICAN WIRE GAUGE)
Number of Conductors
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6200UE 010U1000
Zoro #
G1149496
UPC #
612825174042
Country of Origin
Unknown

Dimensions

Cable Length
1000 ft
Conductor Size
16 AWG (AMERICAN WIRE GAUGE)
Length
1000 ft
Wire Size
16 AWG

Details

Cable Type
Bare Wire
Jacket Material
Polyvinyl Chloride (PVC), Flamarrest
Number of Conductors
2
Wire Gauge
16 AWG
Standards
CEC/C(UL) CMP; NFPA 262, UL 910 (Plenum)
Features
Bendable, Stranded
Stranding
19 x 29
Max. Voltage
300V
Insulation Color
Red, Black
Indoor / Outdoor
Indoor
Plenum / Riser Rated
Plenum Rated
Insulation Material
Flamarrest, Polyvinyl Chloride (PVC)
Insulated / Uninsulated
Insulated
NEC Article and Type
CMP
Wire Material
Bare Copper
Shielded / Unshielded
Unshielded
Jacket Color
Black
Fire Rating - Data Cable
Plenum
Temp. Rating
75°C
Jacket Type
FT6, CMP, Plenum
Product Material
Bare Copper
Product Type
Audio Cable
Product Color
Black
Connector Type on Second End
Bare Wire
Device Supported
Intercom, Audio Device, Sound System, Audio System
Product Name
Security & Sound, 2 Conductor 16 AWG, BC, CMP
American Wire Gauge
16 AWG
Connector Type on First End
Bare Wire
Material Details
Bare Copper - Conductor
CSA
FT6 HORIZONTAL FLAME & SMOKE TEST
Conductor Count
2 Conductors
Jacketing Material
Lspvc-Low Smoke Polyvinyl Chloride
Voltage Rating
300 Volts AC
Conductor Type
Stranded Conductor
Temperature Rating
75 Degrees Centigrade
Spec Nbr Ul Style
UL LSTED WIRE MISC.
Screen/Shield
No
NEC Rating
UL LISTED ART 800 PLENUM
Environmentally Friendly
Yes
Connection B
Bare Wire
Connection A
Bare Wire
Item
Audio Cable
