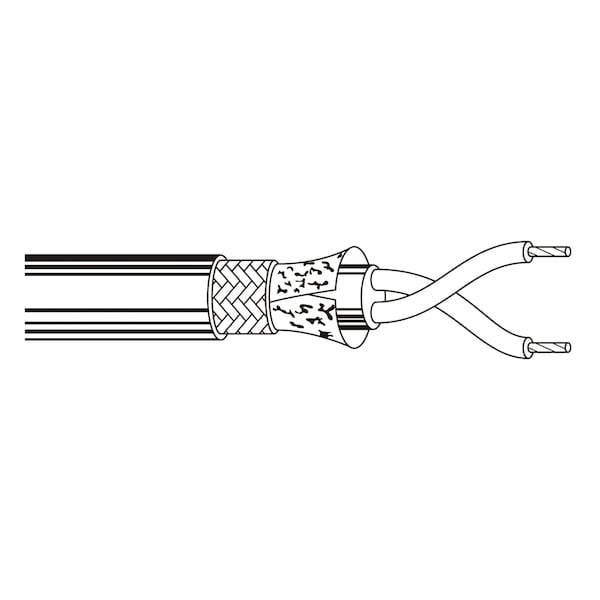

Belden 20-2C TWINAX STR 1/TNC 1/BC PE, DUOFOIL+85% TNC BRD SHD PVC, 1000FT 9207 0105000 - main

20-2C TWINAX STR 1/TNC 1/BC PE, DUOFOIL+85% TNC BRD SHD PVC, 1000FT

  • Mfr # 9207 0105000

  • Zoro # G2087864

product price:  $5.85
/ea
Sold in multiples of 250 for $1,462.50

Key Features

Shielding
Foil + Braid(s)
Color
Black
Insulation Material
Polyolefin (PO, PE, PP)
Length
5000 ft
Impedance
100 Ohm Nominal Impedance
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9207 0105000
Zoro #
G2087864
UPC #
612825225331
Country of Origin
Unknown

Dimensions

Length
5000 ft
AWG Size
20

Details

Shielding
Foil + Braid(s)
Color
Black
Insulation Material
Polyolefin (PO, PE, PP)
Impedance
100 Ohm Nominal Impedance
UL voltage rating
300 V RMS
EU Directive 2015/863/EU
Yes
Stranding@Conductor1
7x28
Suitability - Aerial
Yes - Black only, when supported by messenger wire
Put-Up Type
Reel
UL Flammability
UL1685 FT4 Loading
Suitability - Outdoor
Yes - Black only
Conductor Configuration
1 Twinax
Jacket
PVC
CPR UKCA Class
Eca
UL Temp Rating
75°C
Material@OuterShield1 2
Tinned Copper (TC)
CPR Euroclass
Eca
EU CE Mark
Yes
Material@Insulation01
PE - Polyethylene
Conductor Count
2
CSA Flammability
FT4
Suitability - Indoor
Yes
UV Resistance
Yes - Black only
Environmental Space
Indoor/Outdoor
Plenum
General Purpose (Cm, Cmg, Cmx)
Outdoor
Yes Is Outdoor Grade Material
CSA
FT1 VERTICAL FLAME TEST
Jacketing Material
Pvc-Polyvinyl Chloride
Material
Bare Copper
