Shop BELDEN

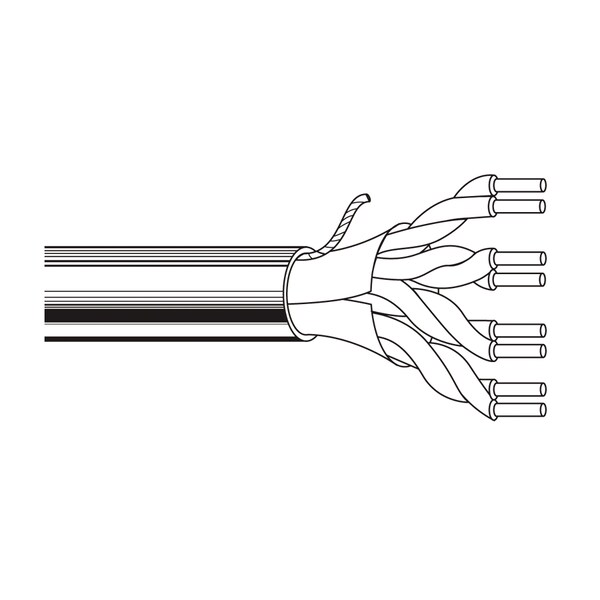

24-4P SOL BC PO FOIL SHD, LSZH JKT BLK, CMG-LS 300V 105C, 1000FT

  • Mfr # 1300SB 0101000
  • Zoro # G2111217
product price:
$
1.39
/ea
Sold in multiples of 25 for $34.75

Key Features

Standards
LOW SMOKE ZERO HALOGEN (LSZH)
Shielded
F/Utp - Foiled/Unshielded Twisted Pair
Length
1000 ft
Gauge
24 AWG (AMERICAN WIRE GAUGE)
Shielding
Multiple or Specialty
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1300SB 0101000
Zoro #
G2111217
UPC #
612825111092
Country of Origin
Unknown

Dimensions

Length
1000 ft
AWG Size
24

Details

Standards
LOW SMOKE ZERO HALOGEN (LSZH)
Shielded
F/Utp - Foiled/Unshielded Twisted Pair
Gauge
24 AWG (AMERICAN WIRE GAUGE)
Shielding
Multiple or Specialty
Color
Black
Insulation Material
Polyolefin (PO, PE, PP)
Conductor Material
Bare Copper
Conductor Configuration
4 Pair
UL Flammability
UL 1685 (UL Loading-Limited Smoke)
Jacket
LSZH / FRNC
Storage Temperature Range
-20°C To +75°C
Suitability - Aerial
Yes - When supported by messenger wire
NEC Articles
Article 800
CPR UKCA Class
Dca-s2,d2,a1
EU Directive 2015/863/EU
Yes
Suitability - Non-Halogenated
Yes
Stranding@Conductor1
Solid
UL Temp Rating
90°C
CPR Euroclass
Dca-s2,d2,a1
Environmental Space
Indoor/Outdoor
Total Number of Pairs
4
UL voltage rating
300 V RMS
Suitability - Indoor
Yes
Suitability - Sunlight Resistance
Yes
ISO/IEC Flammability
IEC 60332-1-2
Put-Up Type
Reel
IEEE Specification
IEEE 802.3bt Type 1, Type 2, Type 3
EU CE Mark
Yes
Suitability - Outdoor
Yes
Material@Insulation01
PO - Polyolefin
Conductor Count
8
Family
C5ET
Type
Data
Sub Family
CABLE
Category/Level
CATEGORY 5E

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
