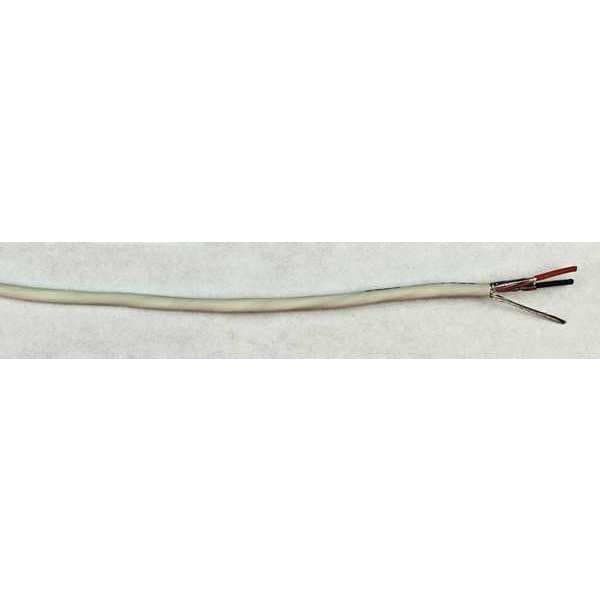

Belden Multi-Conductor, 18 AWG, Natural, 0.150 in. 82760 8771000 - main

Multi-Conductor, 18 AWG, Natural, 0.150 in.

  • Mfr # 82760 8771000

  • Zoro # G3724281

product price: $3,458.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Natural
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
82760 8771000
Zoro #
G3724281
UPC #
612825197744
Country of Origin
United States

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.1 in
Conductor Size - Data Cable
18 AWG
Spool Length
1,000 ft
Nominal Outside Dia.
0.15 in
Length
1000 ft.
Conductor Size
18 AWG
Bend Radius
1 1/2 in

Details

Item
Communication Cable
Number of Strands
30
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Natural
Jacket Material
PVC
Number of Conductors
2
Solid/Stranded
Stranded
Shielding Material
Foil
Maximum Voltage Rating
300 V
NEC Article and Type
800 CMP
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CPR Euroclass: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CMP, NFPA 262, UL 910 (Plenum), FT6, UKCA Mark
Suggested Voltage Rating - Data Cable
300 V
Temp. Range
-4 Degrees to 167 Degrees F
Shielded / Unshielded
Shielded
Total Number of Conductors - Data Cable
2 (1 Pair)
Shielded
Shielded
Package Type - Data Cable
Reel in a Box
Solid / Stranded
Stranded
Insulation Material
FEP
Application - Communication Cable
Audio Systems, Control Systems, Instrumentation Systems
Plenum / Riser Rated
Plenum Rated
Fire Rating - Data Cable
Plenum
Cable Sub-Category
Multi-Conductor
NEC Article
800
Application
Alarm Systems, Audio Systems, Instrumentation Systems
Jacket Material - Wire and Cable
PVC
Item - Data Cable
Communication Cable
Package Type
Reel in a Box
Maximum Operating Temperature
167 Degrees F
Number of Pairs
1
Maximum Impedance
35 ohm
Minimum Operating Temperature
-4 Degrees F
Resistance Properties
Flame/Fire Resistant
Maximum Current
5 A
Maximum Capacitance
51.0 pf/ft (Nominal Capacitance Conductor to Conductor); 97.0 pf/ft (Nominal Capacitance Conducotr to Other (Conductor + Shield))
Product Type
Communication Cable

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 18 AWG, Insulation Material FEP, Jacket Color Natural, Jacket Material PVC, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.1 in, Package Type Reel in a Box, Application Alarm Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CMP, Number of Pairs 1
