Shop BELDEN

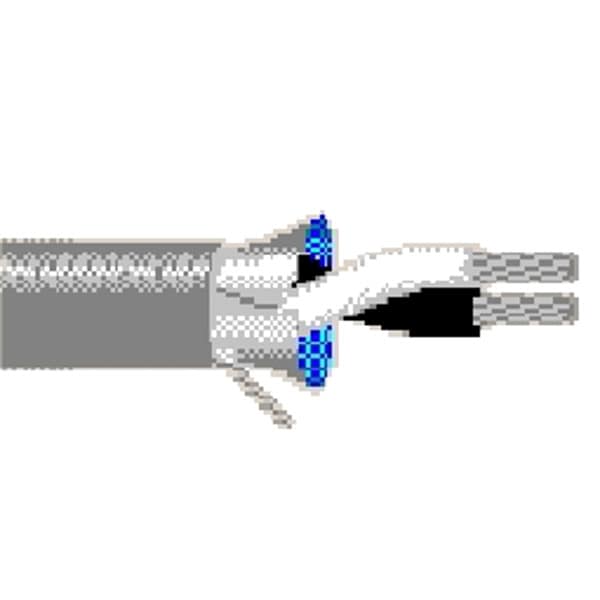

Multi-Conductor, 18 AWG, Silver, 0.222 in.

  • Mfr # 8760 0601000

  • Zoro # G3724485

product price:
$
1,589.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
30
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Chrome
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8760 0601000
Zoro #
G3724485
UPC #
612825215134
Country of Origin
Mexico

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.2 in
Conductor Size
18 AWG
Nominal Outside Dia.
0.222 in
Conductor Size - Data Cable
18 AWG
Length
1000 ft.
Spool Length
1,000 ft
Bend Radius
2 1/4 in

Details

Item
Communication Cable
Number of Strands
30
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Chrome
Jacket Material
PVC
Number of Conductors
2
Solid/Stranded
Stranded
Shielding Material
Foil
Maximum Voltage Rating
300 V
NEC Article and Type
800 CM
Standards
AWM 2092, CM, CPR Euroclass: Eca, CPR UKCA Class: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 800 CM, UKCA Mark, UL 1685 UL Loading, IEC 60332-1-2
Total Number of Conductors - Data Cable
2 (1 Pair)
Shielded / Unshielded
Shielded
Plenum / Riser Rated
Riser Rated
Solid / Stranded
Stranded
Temp. Range
-40 Degrees to 140 Degrees F
Application
Computer Systems, Audio Systems, Instrumentation Systems
Item - Data Cable
Communication Cable
Suggested Voltage Rating - Data Cable
300 V
Shielded
Shielded
Cable Sub-Category
Multi-Conductor
Insulation Material
PE
Application - Communication Cable
Audio Systems, Control Systems, Instrumentation Systems
Fire Rating - Data Cable
Commercial
Package Type - Data Cable
Reel in a Box
Jacket Material - Wire and Cable
PVC
Impedance
57 Ohm Nominal Impedance
Package Type
Reel in a Box
Maximum Operating Temperature
140 Degrees F
Maximum Impedance
7.1 ohm
Resistance Properties
Flame/Fire Resistant
Minimum Operating Temperature
-4 Degrees F
Number of Pairs
1
Maximum Current
14 A
Product Type
Communication Cable
Maximum Capacitance
27.2 pf/ft
Shield Type
Foil Shielded - Alum/Mylar
Conductor Count
1 Pair
Spec Nbr Ul Style
UL STYLE, 2092
NEC Rating
UL LISTED ART 800
Conductor Type
Stranded Conductor
Plenum
General Purpose
Screen/Shield
Yes
Jacketing Material
Pvc-Polyvinyl Chloride
Voltage Rating
300 Volts AC
Construction
Overall Shield & Drain
Temperature Rating
60 Degrees Centigrade
Color Code
Gray (Slate)
Material
Tinned Copper

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 30, Conductor Gauge 18 AWG, Insulation Material PE, Jacket Color Chrome, Jacket Material PVC, Shielded Shielded, Shielding Material Foil, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 1
