  11. Multi-Conductor, 18 AWG, Silver, 0.234 in.
Belden Multi-Conductor, 18 AWG, Silver, 0.234 in. 8461 0601000 - main

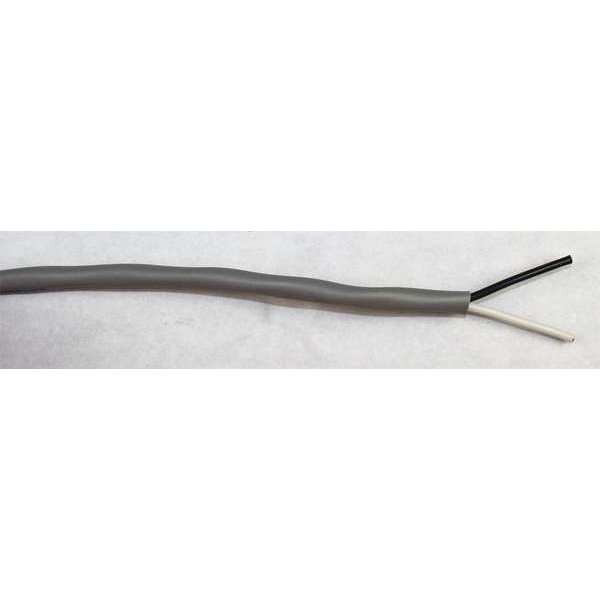

Multi-Conductor, 18 AWG, Silver, 0.234 in.

  • Mfr # 8461 0601000

  • Zoro # G3724555

product price: $1,582.99
/ea
Free Shipping & Returns

Key Features

Cable Length
1,000 ft
Number of Strands
26
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Chrome
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8461 0601000
Zoro #
G3724555
UPC #
612825208174
Country of Origin
Mexico

Dimensions

Cable Length
1,000 ft
Outside Diameter
0.2 in
Conductor Size - Data Cable
18 AWG
Conductor Size
18 AWG
Nominal Outside Dia.
0.234 in
Spool Length
1,000 ft
Length
1000 ft.
Bend Radius
2 1/4 in

Details

Item
Communication Cable
Number of Strands
26
Conductor Gauge
18 AWG
Fire Rating
Commercial
Jacket Color
Chrome
Jacket Material
PVC
Number of Conductors
2
Solid/Stranded
Stranded
Maximum Voltage Rating
300 V
NEC Article and Type
725, 800, CL3, CMG
Standards
APAC Compliance-China RoHS Compliant II (GB/T 26572-2011), CPR Euroclass: Eca, EU CE Mark, EU Directive 2015/863/EU (RoHS 2 amendment), EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), NEC Article 725, Article 800 CMG CL3, UKCA Mark, UL 1685 UL Loading, FT4, IEC 60332-1-2
Shielded / Unshielded
Unshielded
Jacket Material - Wire and Cable
PVC
Suggested Voltage Rating - Data Cable
300 V
Application - Communication Cable
Audio Systems
Total Number of Conductors - Data Cable
2 (1 Pair)
Temp. Range
-4 Degrees to 176 Degrees F
Insulation Material
PVC
Item - Data Cable
Communication Cable
Plenum / Riser Rated
Riser Rated
Solid / Stranded
Stranded
Cable Sub-Category
Multi-Conductor
Application
Computer Systems, Audio Systems, Instrumentation Systems
Package Type - Data Cable
Reel in a Box
Shielded
Unshielded
Fire Rating - Data Cable
Commercial
Features
Stranded
Package Type
Reel in a Box
Conductor
Copper
Product Type
Communication Cable
Product Name
Bulk Speaker Cable
Maximum Capacitance
22.0 pf/ft
Maximum Impedance
7.2 ohm
Maximum Current
14 A
Minimum Operating Temperature
-4 Degrees F
Resistance Properties
Flame/Fire Resistant
Maximum Operating Temperature
176 Degrees F
Number of Pairs
1
Screen/Shield
No
Plenum
General Purpose
Jacketing Material
Pvc-Polyvinyl Chloride
Temperature Rating
80 Degrees Centigrade
Voltage Rating
300 Volts AC
Conductor Type
Stranded Conductor
Spec Nbr Ul Style
UL LSTED WIRE MISC.
Color Code
Gray (Slate)
Conductor Count
1 Pair
CSA
FT4 VERTICAL FLAME TEST - CABLES IN CABLE TRAYS
NEC Rating
NEC CMG
Material
Tinned High-Conductivity Copper Conductors

Description

Communication Cable, Cable Length 1,000 ft, Fire Rating Commercial, Number of Strands 26, Conductor Gauge 18 AWG, Insulation Material PVC, Jacket Color Chrome, Jacket Material PVC, Shielded Unshielded, Shielding Material Not Applicable, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Reel in a Box, Application Computer Systems, Audio Systems, Instrumentation Systems, Maximum Voltage Rating 300 V, NEC Article and Type 725, 800, CL3, CMG, Number of Pairs 1
